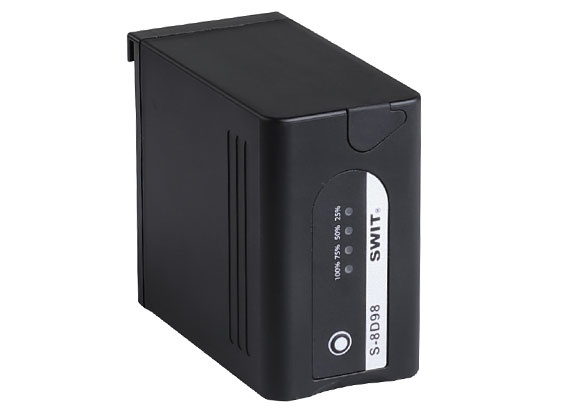

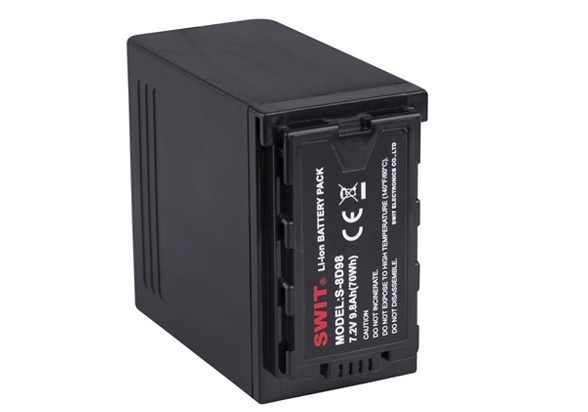

S-8D98 Panasonic EVA1/DVX200 Camcorder Battery Pack

›  Li-ion battery of 7.2V nominal voltage

›  For Panasonic AU-EVA1, AG-DVX200, etc

›  Comparable to Panasonic VW-VBD58

›  Comparable to Panasonic AG-VBR59

›  Can be charged by Panasonic DE-A88

›  Can be charged by SWIT S-3602D

›  70Wh / 9800mAh capacity

›  4-level LED power indicator

›  7.2V Pole-tap DC output

›  5V/1A USB charging output

›  Multiple circuit protections


Features

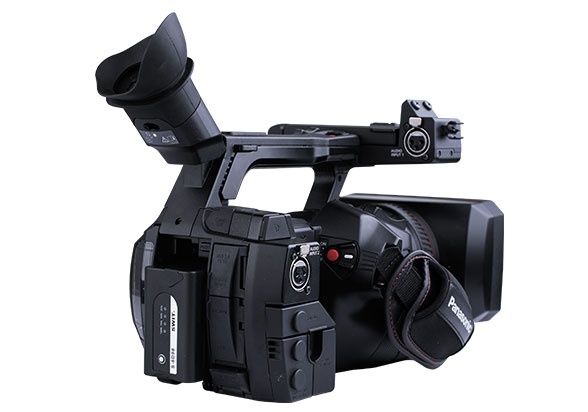

Panasonic EVA1,DVX200 Compatible

Similar battery for Panasonic VW-VBD58/AG-VBR59

S-8D98 is the replacement battery for Panaso- nic VW-VBD58 or AG-VBR59, compatible with Panasonic AU-EVA1, AG-DVX200 and AJ-PX- 270/285, etc.

70Wh/9800mAh Capacity

With 7.2V nominal voltage, the S-8D98 has 70Wh / 9800mAh capacity, and can run more than 3 hours on AU-EVA1 camcorder.

Build-in Pole-tap DC Socket

For DC output or Charging input

A 5.5/2.1mm pole-tap DC output socket is equipped on the S-8D98 battery, for DC 7.2V (Nominate) connection. You can connect on-camera LED light, monitor or wireless transmitter on the pole-tap socket, and get power simultaneously with camera.
The Max power from the pole-tap is 30W, 4A.

Build-in 5V/1A USB Socket

Use S-8D98 as Power Station to your cell phone!

It’s rather a fantastic function to have a USB socket on the DV battery!
Connect your smart phone or pad to the USB socket, press the “Check” button, and then the S-8D98 starts to output 5V/1A power to charge your devices!

4-level LED Power Indicator

The S-8D98 battery has the 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.

Easy Charging

The S-8D98 can be charged on Panasonic original charger DE-A88, and SWIT also provides the Dual channel charger S-3602D or 4-ch charger LC-D421 for S-8D98, will take about 6 hours to charge from empty to 100%.

Nominal Voltage

7.2V

Capacity

70Wh, 9800mAh

Max output power

Total: 30W, 4A

Pins: 25W,3.5A

Pole-tap: 30W, 4A
USB: 5W (5V / 1A)

Compatible cameras

Panasonic AU-EVA1

Panasonic AG-DVX200
Panasonic AJ-PX270

Panasonic AJ-PX285

Dimension

41×70×83mm

      Charging Temperature0-40°C
      Discharging Temperature

-20°C-50°C(Capacity and Max Load may decrease when operating below 0°)

Net weight

Net 337g; With package 0.35kg
Basic Package

MSRP

MSRP

MSRP

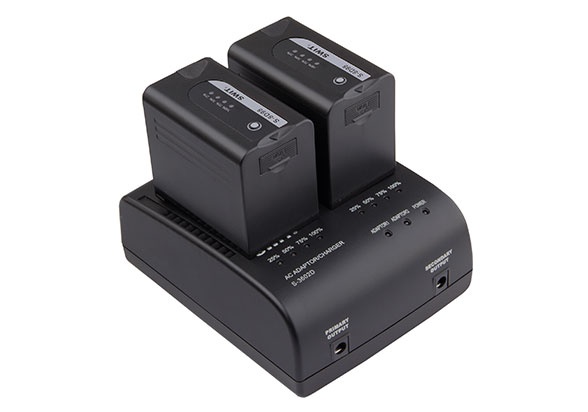

  • S-3602D

    2-ch Panasonic VW-VBD and CGA series Charger and Adaptor

    Simultaneous charging SWIT S-8D98 / S-8D58 / 8D62, Panasonic VW-VBD58, CGA-D54/D28; 2 pole-tap DC adaptor outputs

  • S-8D58

    Panasonic EVA1/DVX200 Camcorder Battery Pack

    43Wh,for Panasonic AU-EVA1, AG-DVX200, AJ-PX270/285; replace VW-VBD58, AG-VBR59, with LED power indicators, Pole-tap DC output and USB charging output

  • S-8D62

    Panasonic CGA Series DV Camcorder Battery Pack

  • S-7000D

    Panasonic CGA/VBD DV Battery Mount Plate

    Metal back plate and open end wires; for Panasonic D54/D28, VW-VBD58, AG-VBR59 battery
