LB-SU75 SONY BP-U Camcorder Battery Pack

◆ 14.4V nominal voltage Li-ion battery

◆ Compatible with SONY BP-U batteries

◆ Display remaining power info in camera

◆ 75Wh / 5.2Ah capacity

◆ Built-in 14.4V D-tap output / Charging input

◆ Built-in 5V/2A USB output

◆ 4-level LED power indicator

◆ Multiple circuit protections

Features

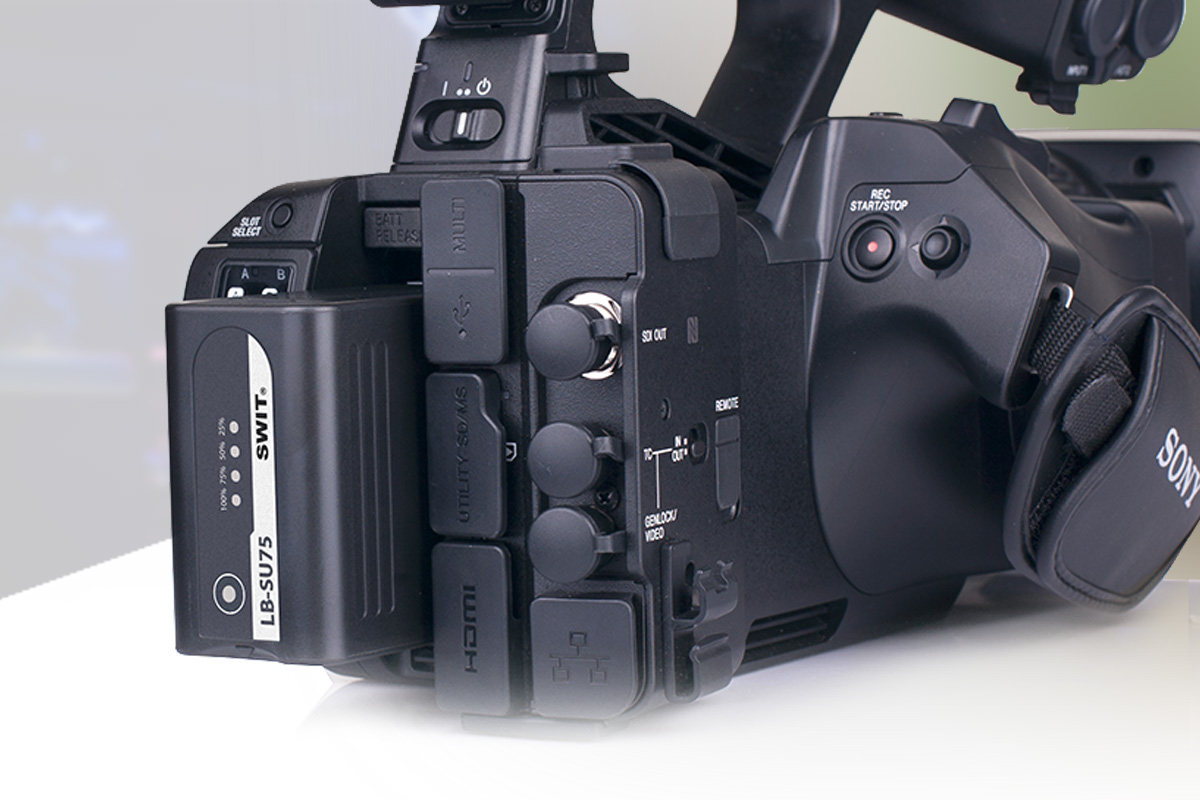

SONY BP-U type Battery

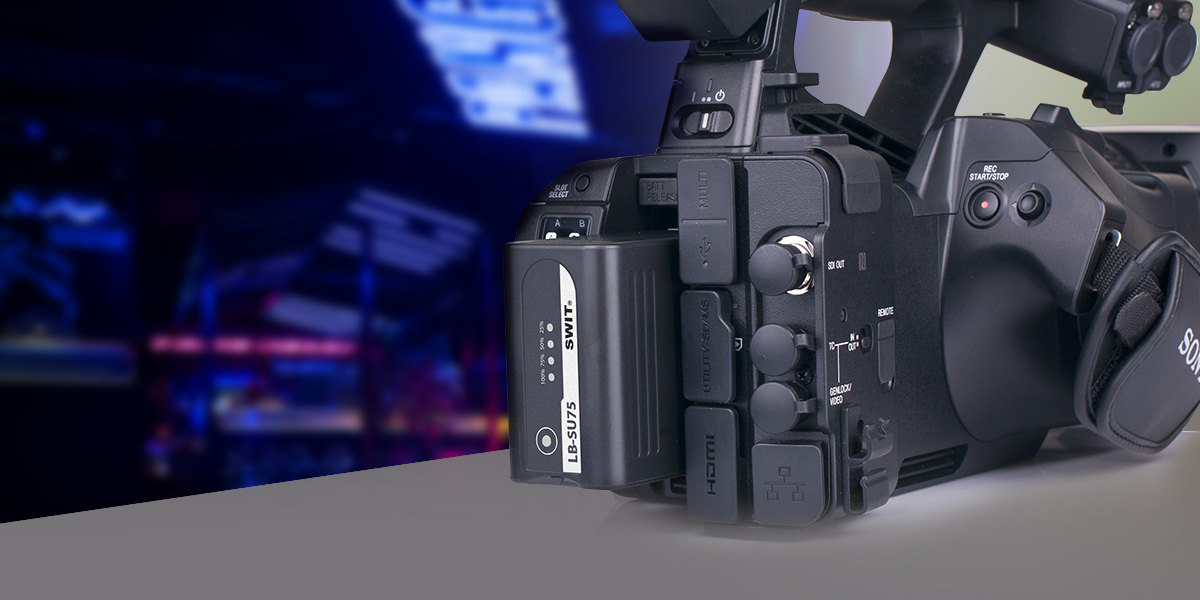

LB-SU75 is the replacement battery for Sony BP-U60, compatible with SONY Camcorder PXW-FX9 / FX6 /  FS7 / FS5, PXW-Z280 / Z190 / X280.

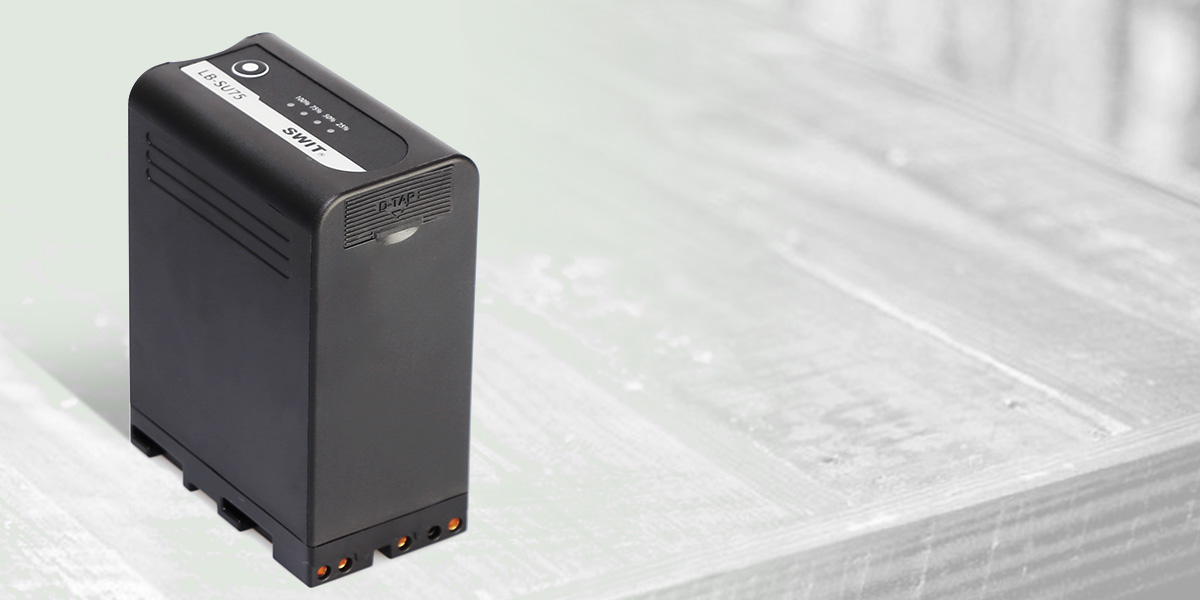

75Wh / 5.2Ah High Capacity

With 14.4V nominal voltage, the LB-SU75 has 75Wh / 5.2Ah capacity, and can run approx. 2 hours 50 minutes on SONY PXW-Z280 camera.

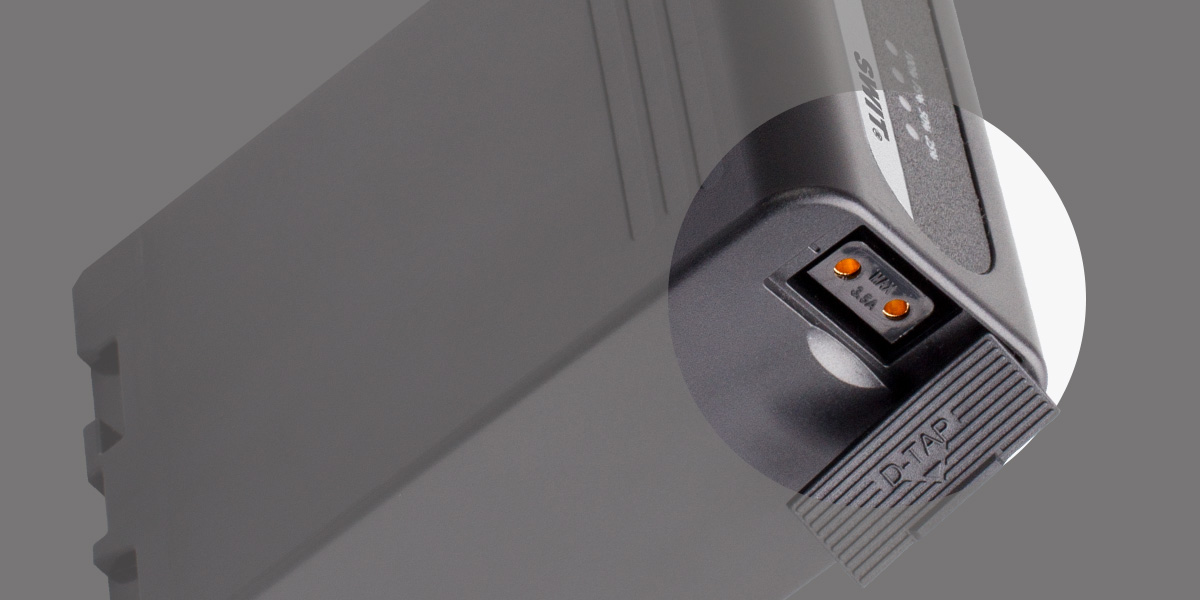

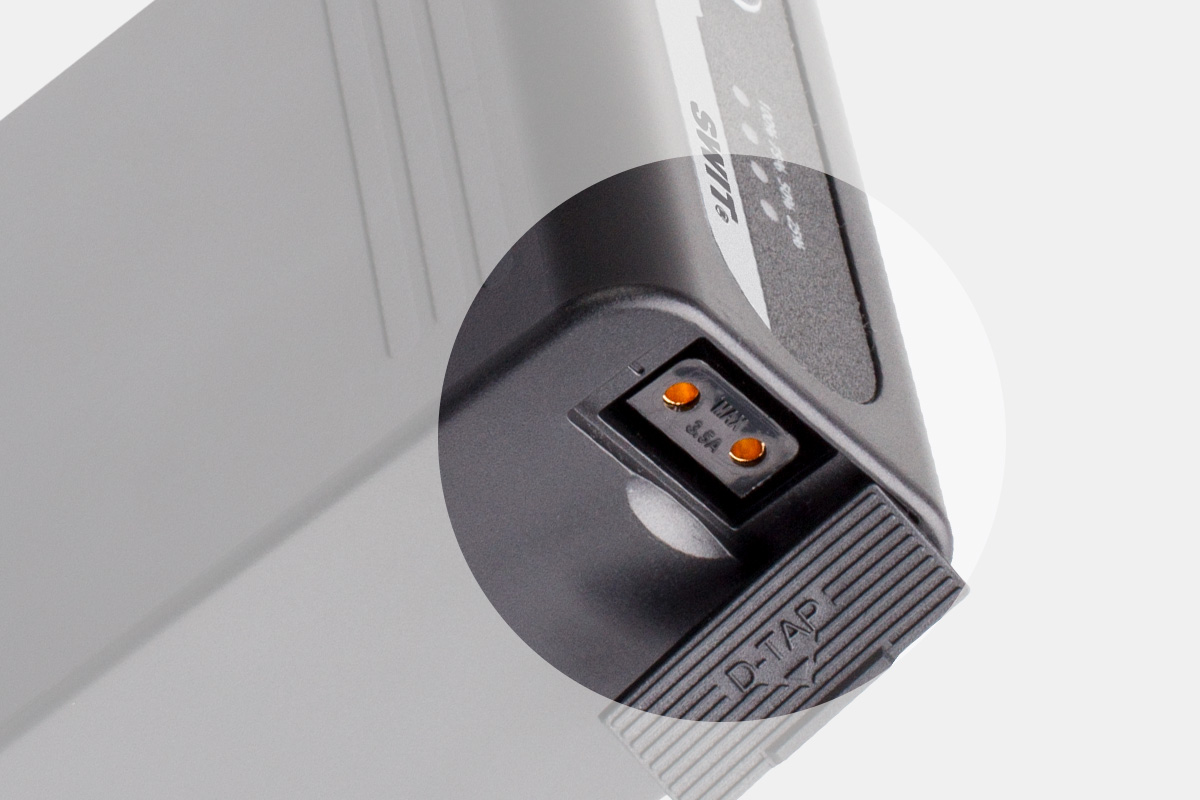

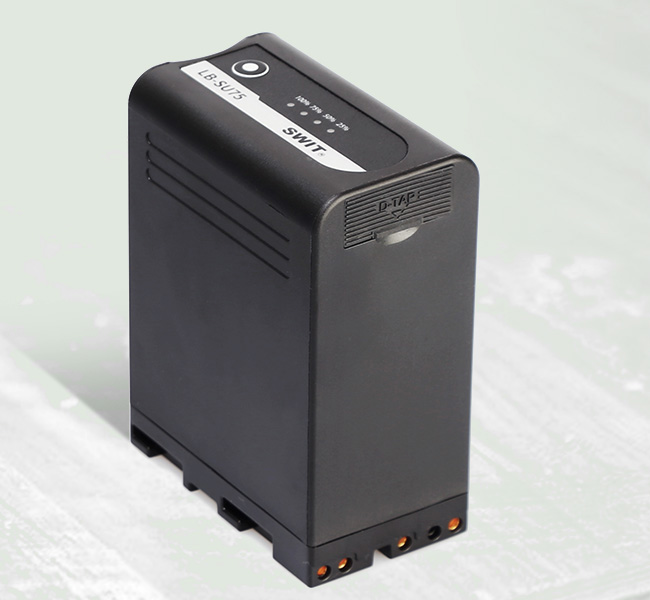

Built-in D-tap DC Output Socket

A D-tap DC output socket is equipped on the side of LB-SU75 battery, for DC14.4V (Nominate) connection. You can connect on-camera LED light, monitor or wireless transmitter on the D-tap socket, and get power simultaneously with camera. The Max power from D-tap is 50W, 4A.
The D-tap socket can also be used as charging input, by SWIT portable charger PC-U130B/B2.

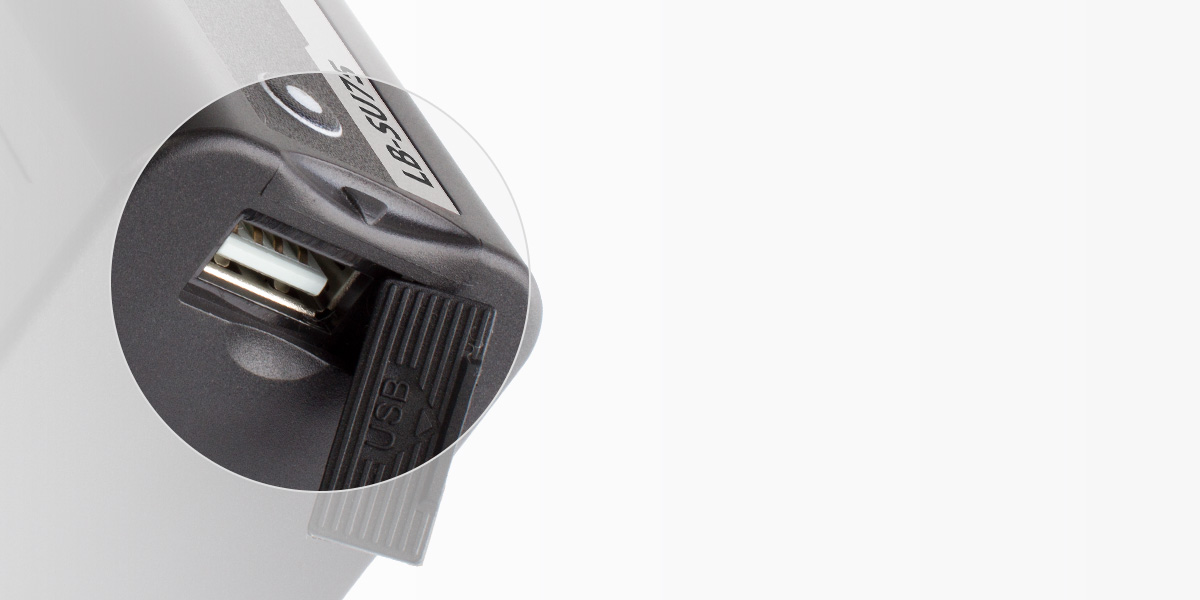

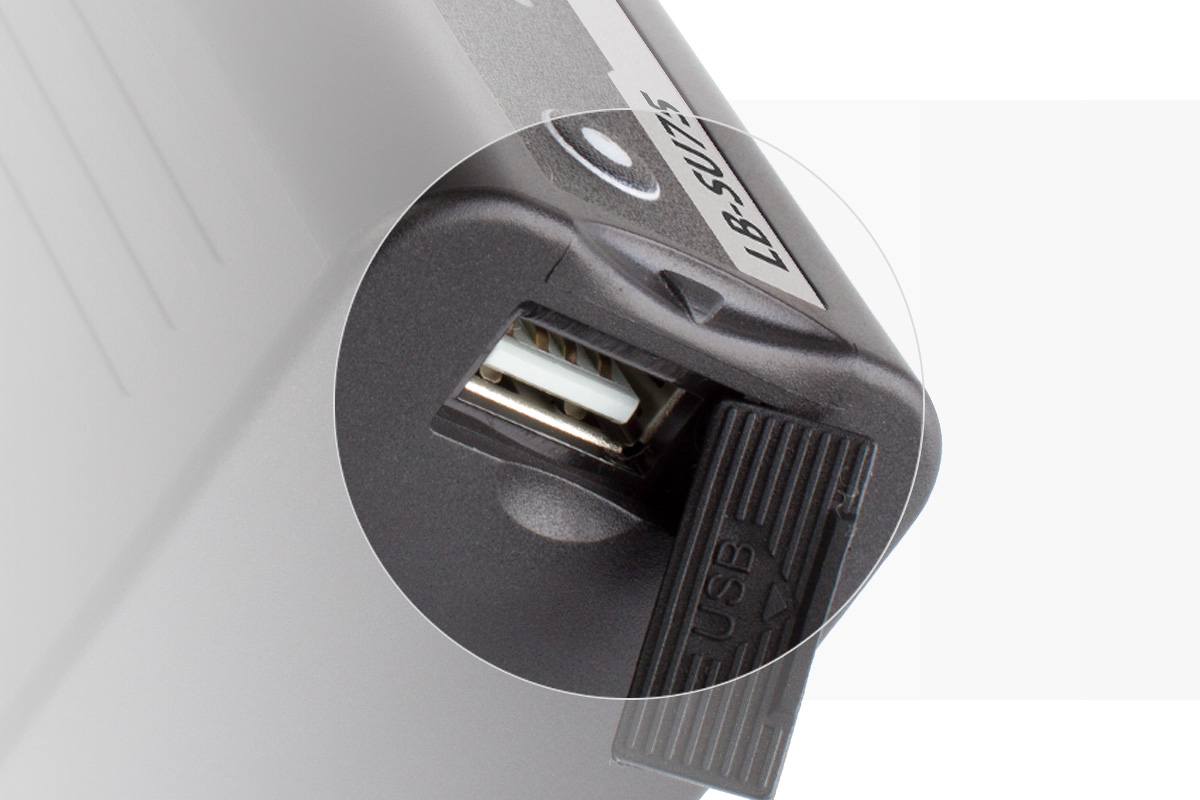

Built-in 5V/2A USB Socket

Connect your USB devices like smart phone or pad to the USB socket of LB-SU75, press the power check button, and then the battery will start to output 5V/2A power to charge your devices.

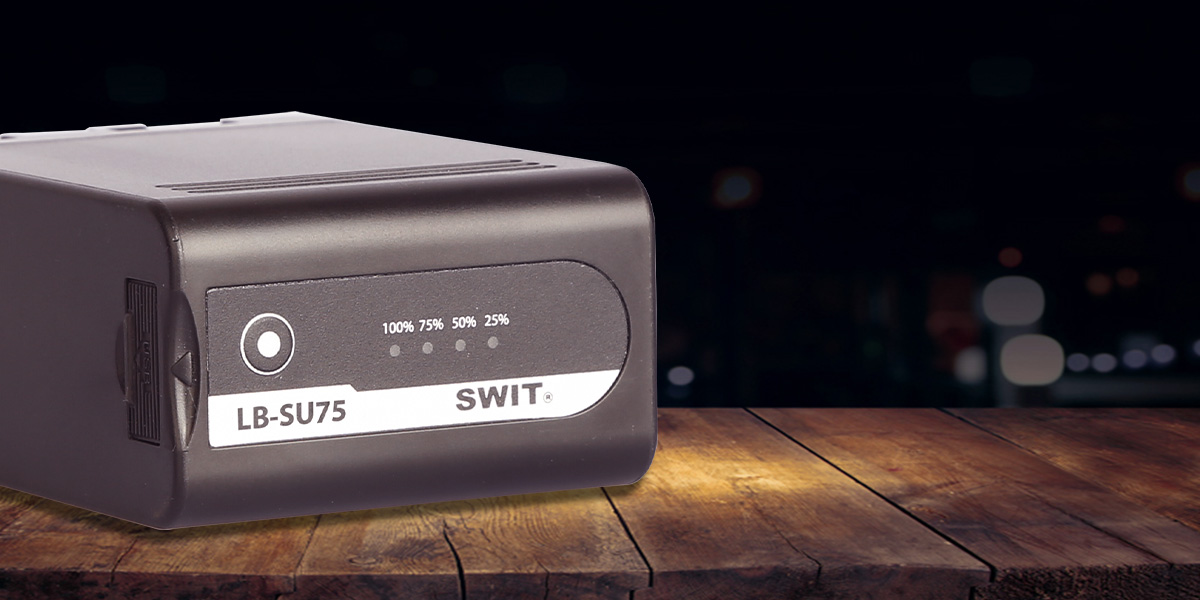

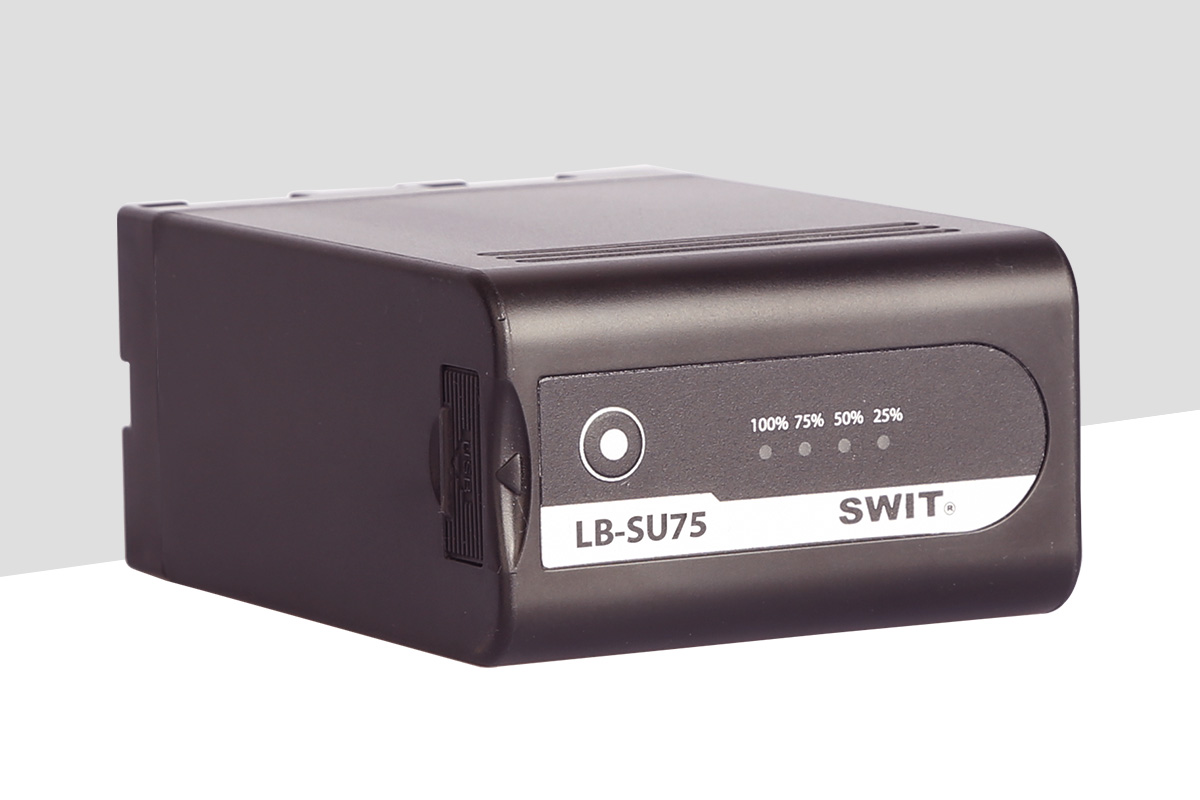

LED Power Indicator

The LB-SU75 battery has the 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using. The power check button can also be used to trigger USB charging.

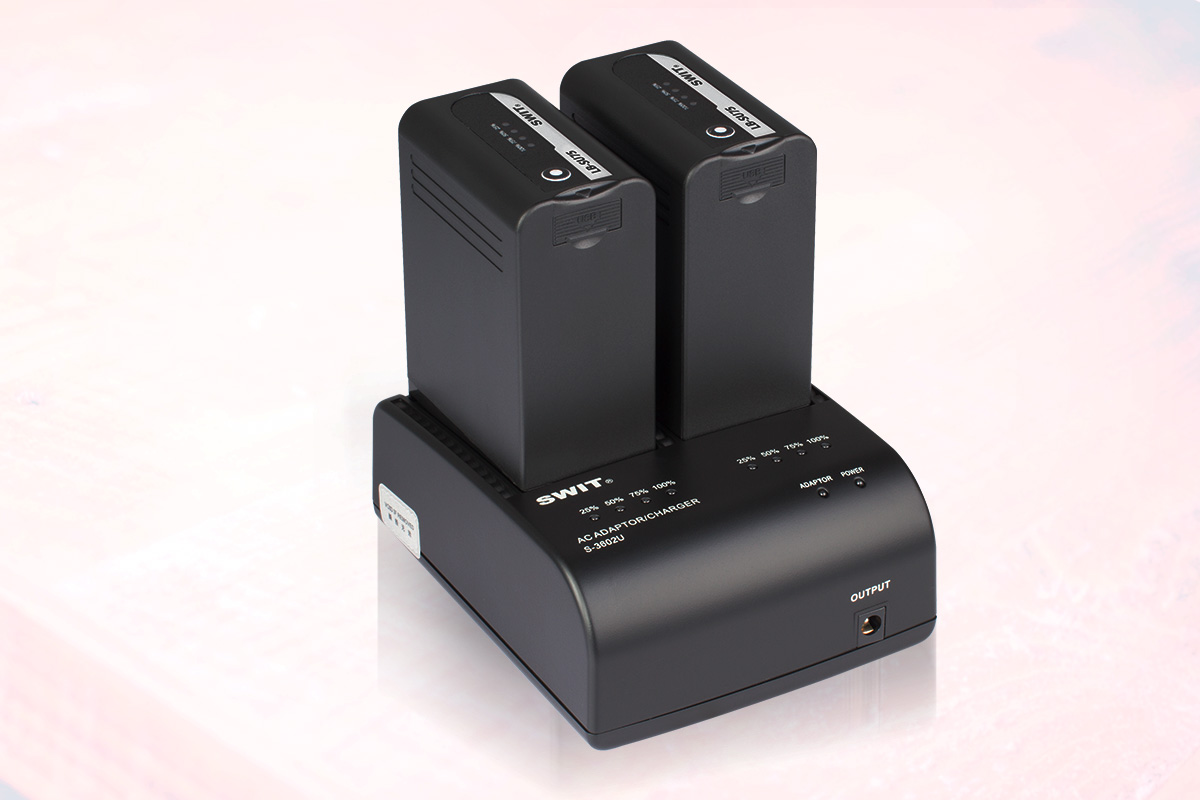

Easy Charging

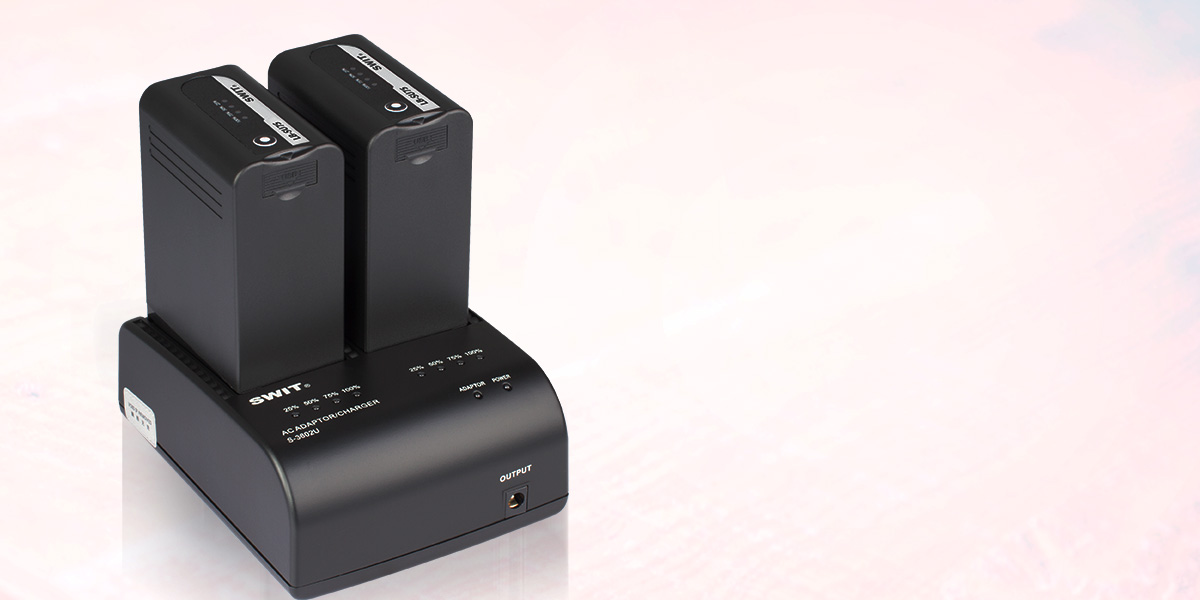

The LB-SU75 can be charged on SWIT 2-ch charger S-3602U or 4-ch charger LC-D421. And you can also use SWIT PC-U130B/B2 Portable D-tap Charger for LB-SU75.
By S-3602U/LC-D421 will take about 3 hours and 30 minutes to charge from empty to 100%.
By PC-U130B/B2 will take 2 hours and 10 minutes to fully charge.

Nominal Voltage

14.4V

Capacity

75Wh, 5.2Ah

Max output power

Total: 50W, 4A

Pins: 50W, 4A

D-tap: 50W, 4A
USB: 5W, 2A

Compatible cameras

SONY PXW-FX9, FX6

SONY PXW-Z280, Z190
SONY PXW-FS5, FS7

SONY PXW-X280

Dimension

70×42×96mm

     Charging Temperature

0-40°C

     Discharging Temperature

-20°C-50°C(Capacity and Max Load may decrease when operating below 0°)

Net weight

Approx 430g
