› KUWI 5.1-5.9GHz Wireless Technology
› DFS Comply
› 3GSDI & HDMI®, with 3GSDI loop out
› High gain panel antenna with built-in receiver
› 10000ft/3km (Line-of-Sight) distance
› 32ms stable low latency
› Strong Wall-Cross Performance
› 2-ch SDI/HDMI® audio transmission
› OLED info and channel switching
› Support up to 22 pairs working in one location
› Multicast - 1 transmitter to unlimited receivers
› Wireless protocol & content double encryption
› Reclock and accurate color reproduction
KUWI Wireless Technology
SDI&HDMI® 10000ft / 3km long distance
FLOW10K wireless system is based on SWIT
latest professional KUWI wireless technology,
5.1-5.9GHz license free bands, DFS comply, sup-
ports 3G/HD-SDI and HDMI® (Max 1080p60) to
transmit 10000ft / 3km Line-of-Sight distance.
The KUWI professional wireless chip features
stable connection at any complex environment
and stronger in wall-cross capability.
The long distance wireless can be widely used in
film production, event broadcasting etc.
The Transmitter
The Transmitter has 2 omni antennas, supports
1x 3G/HD-SDI input
1x 3G/HD-SDI loop output
1x HDMI® 1.3 input
SDI & HDMI® formats:
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50
* Supports embedded audio (CH1&2) transmission.
The Panel Receiver
The Receiver has built into high gain directional
Panel Antenna, compact size, without complex
antanna wires connection, solid and reliable,
and provides 1x 3G/HD-SDI output.
10000ft/3km Long Distance
Strong Wall-cross Performance
With the high gain panel receiver, FLOW10K supports 10000ft/3km
(Line-of-sight) reliable wireless transmission, and featured stron-
ger wall-cross performance due to both RF optimize and image
quality optimize, so that will keep video transmission without date
lost or crash comparing to regular 5GHz wireless transmitters.
Power Supply
The power consumtion of Tx and Rx are less than 9W.
The Transmitter provides NP-F DV battery plate, and
7-34V DC-IN socket;
The Panel Receiver provide V-mount battery plate,
and 7-34V DC-IN socket.
OLED Display & Channel Switch
5GHz Frequency, DFS Comply
The FLOW wireless works under 5.1-5.9GHz, with built-in
wireless scanner, and detect wireless condition of all fre-
quencies, automatically jump to the best wireless channel
to keep reliable connection and transmission, and DFS
comply.
You can also switch the wireless channels manually from
7 Non-DFS restricted channels.
Both Transmitter and Panel Receiver are equipped with
OLED to display signal format, wireless channel number
and signal strength.
Multicast and Double Encryption
Support 1 transmitter to unlimited quantity receivers reliable
multicast mode. The transmitter and receivers are paired and
double encrypted by private transmission protocol and by
AES128, in order to protect the footages.
Stable Connection at Worst Wireless Environment
The FLOW series adopt professional KUWI 5GHz wireless technology, can keep connected at any complex wireless
environment, such as sports stadium, concert, public plaza where full of people, electronic devices or wifi routers.
FLOW series Cross-Receiving
The FLOW10K can work together with other FLOW series wireless at different receiving distance.
Use FLOW10K Tx, you can receive in 500ft with FLOW500 Rx, and in 2000ft with FLOW2000 Rx, and in 6500ft with FLOW6500 Rx, and in 10000ft with FLOW10K Rx.
Reclock & Color Reproduction
To ensure the quality of black level, signal noise and color reproduction
of the wireless received signal, the FLOW series wireless receiving sup-
ports signal re-clock and accurate color reproduction.
Input / Output
Transmitter | 3G/HD-SDI input×1, loop output ×1 |
| HDMI® 1.3 input×1 |
Receiver | 3G/HD-SDI output×1 |
|
Video Formats
SDI | 1080p60, 1080p59.94, 1080p50 |
| 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; | |
| 1080psf23.98, 1080psf24 | |
| 1080i60, 1080i59.94, 1080i50; | |
| 720p60, 720p59.94, 720p50 | |
HDMI® | 1080p60, 1080p59.94, 1080p50 |
| 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; | |
| 1080psf23.98, 1080psf24 | |
| 1080i60, 1080i59.94, 1080i50; | |
| 720p60, 720p59.94, 720p50 |
Wireless
Frequency | 5.17GHz-5.69GHz and 5.75GHz-5.83GHz |
RF Modules | OFDM 16QAM, 64QAM, QPSK, BPSK |
RF Power | 128mW |
Transmission Distance | 10000 feet / 3000 meters (Line of sight) |
General
Input voltage
| Transmitter DC 7-34V Reveiver DC 7-34V |
Power Consumption
| Transmitter 9W Reveiver 9W |
Dimension(w/o antenna)
| Transmitter 66×106.5×24.7 (mm) Reveiver 304.7×304.7×42.5 (mm) |
Net weight
| Transmitter 286g Receiver 2300g; With package 9.35kg |
Working Temperature | 0°C -+40°C |
MSRP
MSRP
MSRP
-

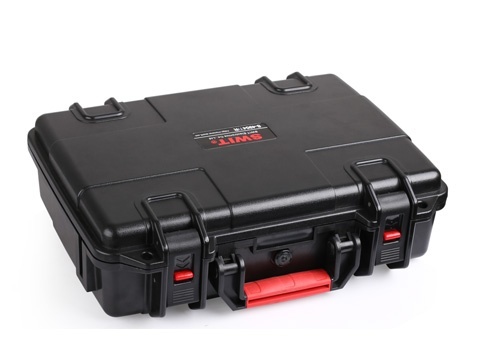

Carrying Case
-
AC1-DC adaptor (3 meters)
-
D-tap to lockable Pole-tap cable
-

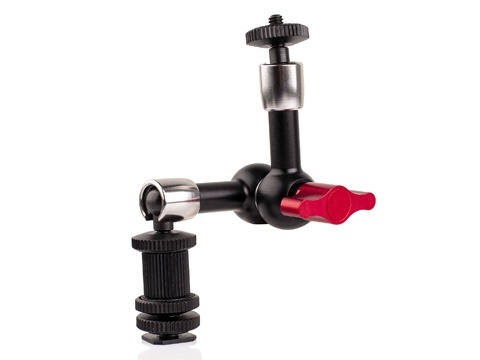

Cold shoe and 14 Arm Trestle
-
FLOW10K 1x Transmitter 1x Receiver
-
Antenna

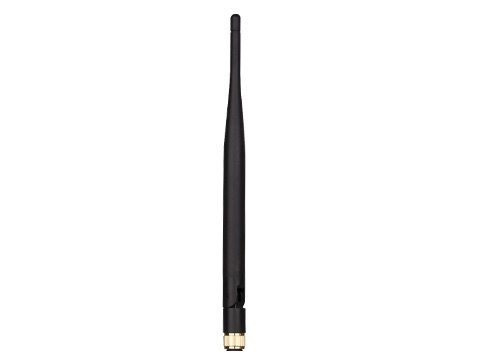

Spare omni antenna for FLOW6500 Transmitter -
S-7114

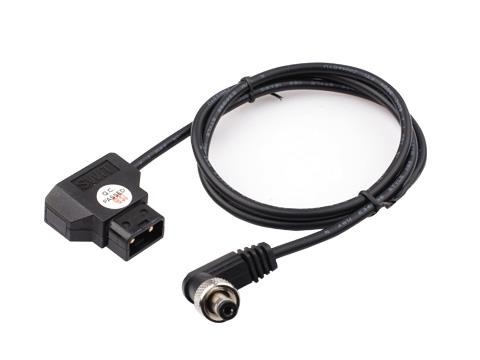

D-tap to lockable 5.5/2.1mm pole-tap cable, connect with battey D-tap socket and power the wireless transmitter or receiver. -

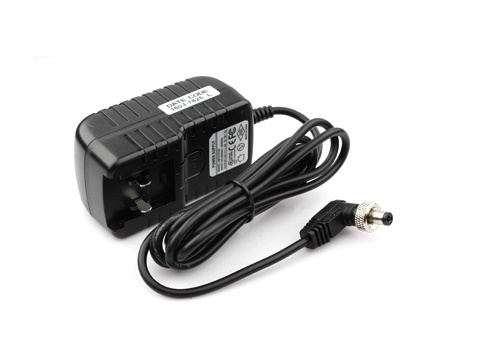

AC-DC adaptor (3 meters)
AC to lockable 5.5/2.1mm pole-tap DC adaptor, to power the panel receiver. Cable length 3 meters.
-
FLOW500
SDI&HDMI® 500ft/150m Wireless System
3GSDI & HDMI® transmission, 150 meters (LOS), Strong Wall-cross, OLED info, DFS comply.
-
FLOW2000
SDI&HDMI® 2000ft/600m Wireless System
3GSDI & HDMI® transmission, 600 meters (LOS), Strong Wall-cross, OLED info, DFS comply.
-

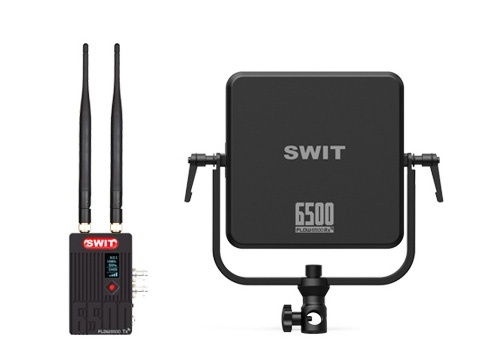

FLOW6500
