› Tiny V-mount battery, Pocket fit
› 45Wh/3.1Ah fly-friendly capacity
› Max 150W/12A constant load
› 1x D-tap output & charging input
› 1x USB 5V/2A output
› 5-step LED power indicator
› Power info for both SONY & RED
› Wire-Free internal technic
› Multiple circuit protections

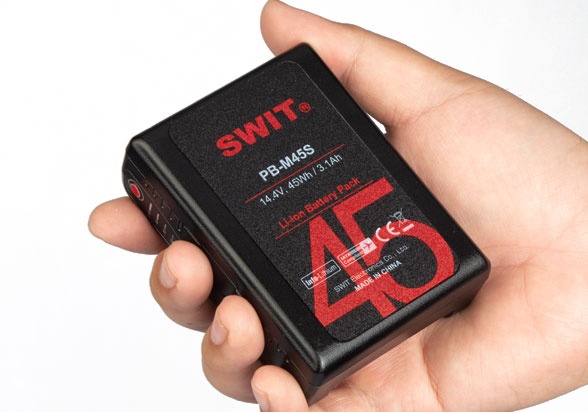

Tiny V-mount battery
Pocket fit size
The brick size V-mount batteries are always too big and
heavy for field shootings, especially the handheld stabi-
lizers, focus puller monitor, portable LED panel, or small
cameras.

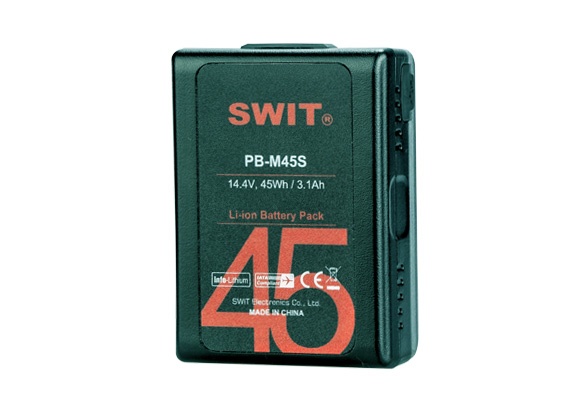

PB-M45S Pocket V-mount battery is a perfect solution!
It’s only a DV battery size, 45Wh capacity, and without any compromise on the
DC sockets!
45Wh Fly Friendly
150W/12A constant high load
PB-M45S consists of 4pcs of high class 18650 battery
cells, nominal voltage is 14.4V and reaches 45Wh / 3.1Ah
high capacity. You can take this battery in carry-on luggage to board airplane.
The Constant load is as high as 150W, 12A, applicable for high power lightings.

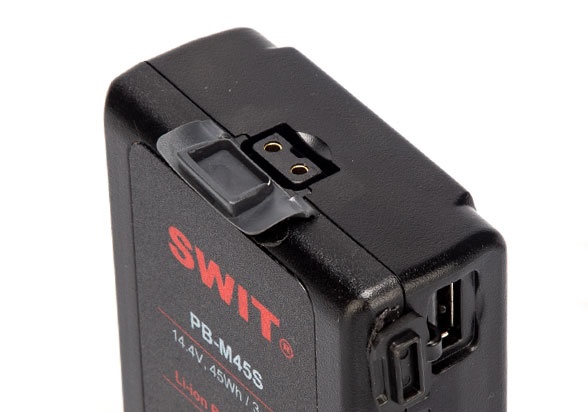

Built-in D-tap and USB
The pocket size PB-M45S still has D-tap
and USB sockets built-in.
The D-tap socket share 100W/8A load DC
output with the V-mount pins, and support
charging input by SWIT PC-U130B2 dual
D-tap charger.
The USB socket outputs 5V/2A for smart
phone fast charging.
5-LED Power Indicator
Low battery warning
PB-M45S has 5-LEDs to indicator remaining power percentage. When remaining power is less than 10%, the last LED will
flash automatically to remind changing battery.
3A Fast Charging
PB-M45S can be charged by all standard V-mount chargers and D-tap chargers.
Max charging current is 3A. The following chargers are recommended:
1. S-3822S, Portable 2-ch Simultaneous Charger
Charge 2x PB-M45S: Approx. 75 min
2. PC-U130B2, Ultra-Portable Dual D-tap head charger
Charge 1x PB-M45S: Approx. 75 min
Charge 2x PB-M45S: Approx. 2 hours
Hot-Swap Adaptor
You can use 2x PB-M45S hot-swapable on cam-
eras, by the Hot-swap Adaptor KA-M20S, to get
a long time, uninterrupted power, and equivalent
to a standard size V-mount battery.
Wire-Free Internal Tech
PB-M45S has innovative “Wire-Free” internal technic.
All the cells, D-tap, USB, power indicator devices are
directly soldered onto PCB, no connecting wires, to
reduce internal resistance effectively, and make the
circuit stable, safe, and reliable.

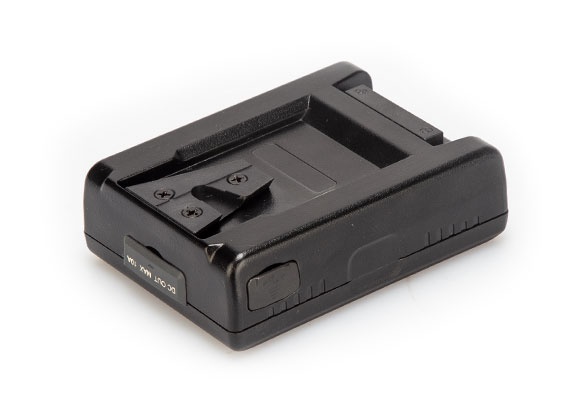

Battery plate | V-mount |
Nominal voltage | 14.4V |
Capacity | 45Wh, 3.1Ah |
Max output | In total: 150W |
Electrodes: 150W, 12A | |
| USB:10W, 5V/2A | |
| D-tap: 100W / 8A | |
Dimension | 100×74×34mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C（Capacity and Max Load may decrease when operating below 0°） |
Net weight | Net 0.31kg; With package 0.35kg |
Max charging current | 3A |
MSRP
MSRP
MSRP
-
PB-M98S
98Wh Pocket V-mount Battery Pack
Pocket fit tiny V-mount battery, built-in D-tap and USB, 150W load.
-

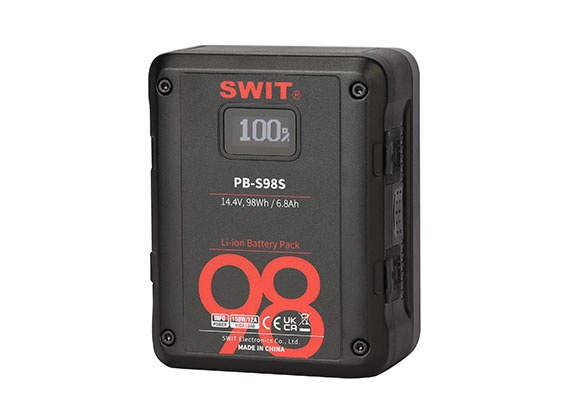

PB-S98S
