› Square shape design for Cine-cameras
› 146Wh, 10.1Ah larger capacity
› At least 200W, 16A constant high load
› 2× D-tap output sockets (120W/10A in total)
› 1× USB 5V/2A power output sockets
› OLED display accurate remaining run time
› Multiple circuit protections

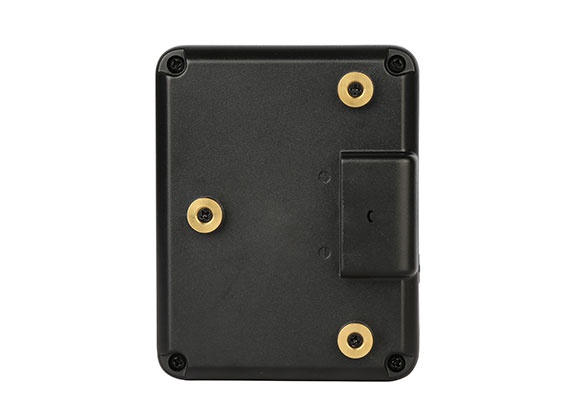

Square shape design for Cine-cameras
PB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with most of the Cine-cameras.
146Wh /10.1Ah Capacity
Consists of 12pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 146Wh / 10.1Ah high capacity.
Can run approx 5 hours for normal 30W cameras.
High Load for Cine Cameras
At least 200W / 16A load
PB-S146A provides at least 200W/16A high load even at 1% capacity, to drive high power Cine cam- eras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 18A

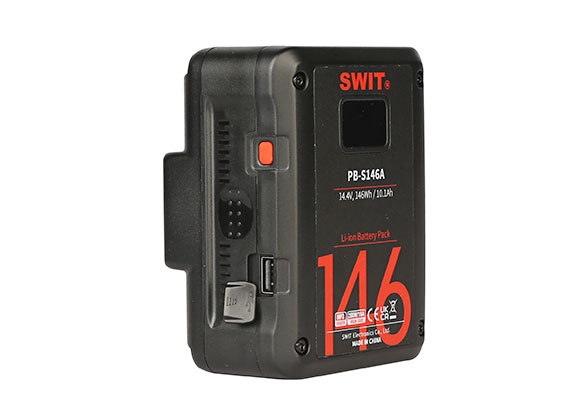

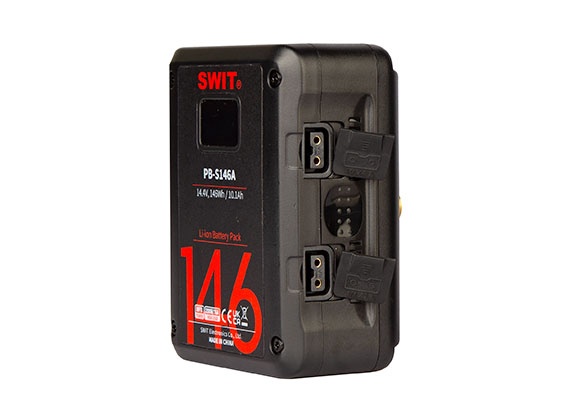

2× D-tap, 1× USB
PB-S146A provides 2x D-tap output sockets with 10A/120W load, and 1x USB 5V/2A socket, to power other on-camera devices together.
Digital Power Info
OLED display accurate remaining run time
The build-in OLED can displays remaining power percentage, remaining working time,and battery cycle times.
Battery Protection Display
When any over load, over charging, short circuit, high/low temperature detected, the battery will protect itself and display protection information. You can take steps to re-active battery, to ensure the best battery condition and prolong battery life.
Battery plate | Gold-mount |
Nominal voltage | 14.4V |
Capacity | 146Wh, 10.1Ah |
Max output | In total: 200W |
Electrodes: 200W,16A | |
USB:10W, 5V/2A | |
D-tap: 120W / 10A | |
Dimension | 121×95×59mm |
Charging Temperature | 0-40°C |
Discharging Temperature | -20°C-50°C(Capacity and Max Load may decrease when operating below 0°) |
Net weight | Net 0.878kg; With package 0.9kg |
Max charging current | 5A |
D-TAP socket number | 2 |
USB socket number | 1 |
