17.3-inch 4K Monitor
UHD panel, 91.5% DCI-P3
BM-U175 adopts a 17.3-inch 8-bit+2FRC LCD
panel, UHD 3840×2160 resolution, 300nits LED
backlight, 800:1 contrast, 91.5% DCI-P3 color gamut. The viewing angle is H178° / V178°.
Multi 4K/8K Interfaces
12GSDI 4-in 4-out, supports:
Single link 4K; Quad link 4K and Quad link 8K
HDMI® 2.0 (4K60P)
12GSDI via SFP Fiber (Optional)
ST2110 IP via SFP Fiber (Optional)
* The Quadlink 4K/8K supports both Quad mode and 2SI interleave mode;
* The SFP optical fiber adaptor is optional purchased.
Display Modes
Supports Single link 4K input including 12GSDI, HDMI®2.0 or 12GSDI via SFP, and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs.
You can also input 4x independent 4K videos to multiview, supports 12G/6G/3G/HD-SDI and HDMI® 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input.
HDR/SDR EOTFs
BM-U175 provides HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, and Color Gamut selection from LCD native, BT.709, DCI-P3 and BT.2020.
Payload ID Auto Setting
Support input video Payload ID identify and the monitor will automatically set HDR/SDR EOTFs, Color Gamut, Input range, Color space and Color depth according to the Payload ID info.
Multi CG & EOTF Viewing
Supports 1 input source copied to 4 windows and display different HDR/SDR and color gamut simultaneously. You can get correct reference when producing HDR and SDR
together.
3DLUT Auto Self-Calibration
By X-rite i1 or JETI Specbos 1211
With built-in 3DLUT calibration software, (software copyright)
support X-rite i1 and Jeti Specbos 1211 probes to directly connect
with the monitor USB port.
The monitor generates color patterns and the color probes read the
color, send color info to monitor via USB. Then the monitor
compares the color difference and generate 3DLUT and calibrate
itself automatically.
Calibration time: X-rite i1 15min, Specbos 1211 45min
Calibration result: ∆E≤1.0
Audio/Video Zero Latency
Support Zero latency mode (less than 1/100 frame) under 4K input sources, for special image
processing mode for lip-sync monitoring.
HDR/SDR De-log LUTs
The monitor has built-in multi camera logs
to HLG1000, PQ1000, Rec 709 SDR
conversion LUTs, including Log-C, C-log,
S-log2, S-log3, V-log, J-log1, RedLogFilm
etc.
You can also upload User LUTs to monitor
by USB disk, support 17x17x17 3DLUT
cube files.
Multiple Video Analysis Patterns
Audio Patterns
Max 16-ch embedded audio meters display, and select any 2 channels audio to output via speaker or 3.5mm headphone socket.
Moreover, BM-U monitors support Lissajous and 5.1+2 surround sound patterns.
Eye Pattern
Built-in eye pattern to check input video transmission quality via SDI cable, especially the 12GSDI quality.
Webserver IP Remote Control
BM-U175 supports webserver remote control by
Ethernet LAN connection.
Use computer web browser to open the monitor control
panel, and select input sources, adjust picture
parameters, set up video / audio functions and assign
function keys, etc, without install any APP.
19-inch Rack mount
BM-U175 monitor provides a pair of rack ears in the package, to install onto standard 19-inch rack, 7U height.
LCD Performance
Size | 17.3 inches |
Display area | 381.88×214.82mm |
Resolution | 3840×2160 |
Aspect ratio | 16:9 |
Brightness | 300nits |
Contrast | 800:1 |
Color depth | 16.77M colors, 8-bit |
Signal process | 18-bit |
Viewing angle | 178°(H) /178°(V) |
Input
BNC ×4 | 12G/6G/3G/HD/SD-SDI input |
HDMI® ×1 | HDMI® 2.0 input |
SFP ×1 | Optical Fiber input (By optional SFP adaptor) |
RS485 ×1 | TSL 3.1/4.0 UMD input |
RS485 ×1 | GPI (Tally) input |
RJ45 ×1 | 1000M Ethernet input for Webserver IP control |
Output
BNC ×4 | 12G/6G/3G/HD/SD-SDI loop output |
RS485 ×1 | TSL 3.1/4.0 UMD output |
Analog audio | 3.5mm headphone and speaker |
Video Format
SDI 1/2/3/4 | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080i (50 / 59.94 / 60) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94), 576I (50) | |
Quad Link 4K (Each channel) | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
Quad Link 8K (Each channel) | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
HDMI® | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) |
General
Input voltage | DC 12V-17V, AC 100-240V, 50/60Hz |
Power consumption | 60W |
Working temperature | 0°C～+50°C |
Working humidity | 10%～90% |
Storage temperature | -15°C～+60°C |
Storage humidity | 10%～90% |
Dimensions | 436×310.8×88.8mm |
Net weight (main body) | Net 5.9kg; With package 8.55kg |
MSRP
MSRP
MSRP
-

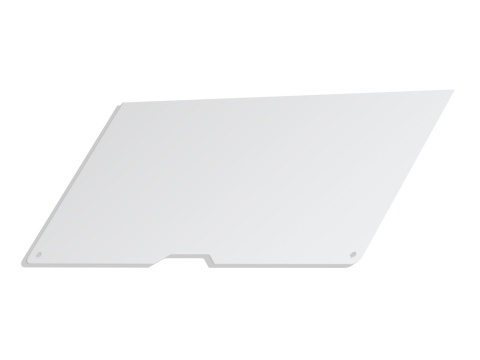

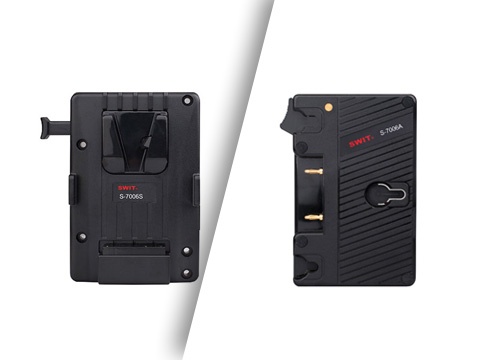

V-mount or Gold mount plate
-

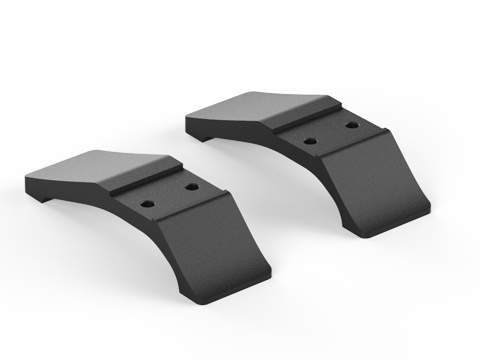

Desktop feet
-

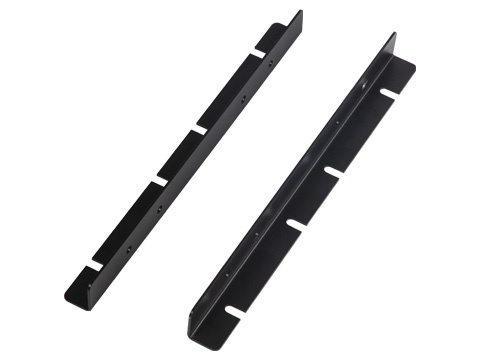

19" Rack Ears
-

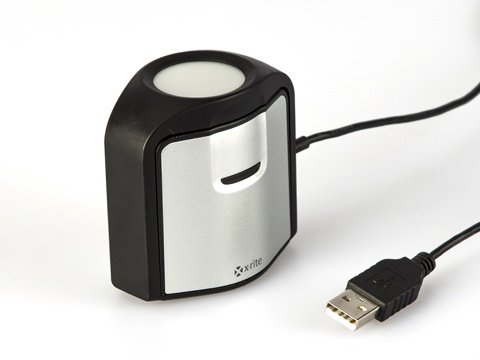

X-rite i1 Display
