› 23.8-inch 1920×1080 QLED Panel
› 100% DCI-P3 wide color gamut coverage
› VICO 1.97 A-class Eye Protecting LCD
› 12G-SDI, 4x3G-SDI, HDMI®2.0 4K input
› 4-ch SDI/HDMI® mixed multiview
› 2-ch SDI/HDMI® PBP or PIP view
› Multi Color Gamut & HDR/SDR Viewing
› Payload ID auto setting
› 18-bit internal color processing
› Audio/Video Zero latency for lip-sync
› 3DLUT Auto Self-calibration without PC
› Built-in Multi camera Delog LUTs
› User 3DLUTs upload via USB
› Waveform / Vector / Histogram / Eye pattern
› Focus assist / False color / Zebra
› 16-ch audio meters / Lissajous pattern
› 5.1 & 7.1 surround sound phase pattern
› IP webserver remote control
› TSL UMD and text TALLY display
› USB firmware upgrade
23.8-inch QLED WCG Panel
FHD, 100% DCI-P3 Coverage
BM-H245 adopts a 23.8-inch1920x1080 QLED panel, 100% DCI-P3 coverage wide color gamut, 400nits LED backlight, 1000:1 contrast, H/V 178° viewing angle for broadcast and film productions.
Multi 4K Interfaces
BM-H245 provides 4x SDI inputs and 2x SDI loop outputs,
supports multiple 4K inputs including:
- 12GSDI Single link 4K;
- 4x3GSDI Quadlink 4K, (SQD and 2SI)
- HDMI® 2.0 (4K60P)
Supports pixel-to-pixel zoom-in the 4K signal to FHD panel.
Display Modes
Supports Single link 4K input including 12GSDI, HDMI®2.0, and Quad link 4x 3GSDI 4K inputs. You can also input 4x independent sources to multiview, or 2x sources Pic-by-Pic or Pic-in-Pic view, supports 12G/6G/3G/HD-SDI and HDMI® 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color
gamut selection for each input.
VICO 1.97 Eye Protect
BM-H245 QLED panel has a Quantum Dot layer between LCD screen and its LED backlight, which changes the LED spectrum to reduce blue and balance the R/G/B peak, which will stimulate people’ s cone cells evenly, and reducing visual fatigue effectively.
The VICO (Visual Health and Comfort) testing scores 1.97, A class,
to protect your eyes from long time video editting or broadcast
studio productions.
HDR/SDR EOTFs and Color Gamut Selection
BM-H245 provides HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, and Color Gamut selection from LCD native, REC.709, DCI-P3 and REC.2020.
Payload ID Auto Setting
Support input video Payload ID identify and the monitor will automatically set HDR/SDR EOTFs, Color Gamut, Input range, Color space and Color depth according to the Payload ID info.
Multi CG & EOTF Viewing
Supports 1 input source copied to 4 windows
and display different HDR/SDR and color
gamut simultaneously. You can get correct
reference when producing HDR and SDR
together.
3DLUT Auto Self-Calibration
By X-rite i1 or JETI Specbos 1211
With built-in 3DLUT calibration software, (software
copyright) support X-rite i1 and Jeti Specbos 1211
probes to directly connect with the monitor USB port.
The monitor generates color patterns and the color
probes read the color, send color info to monitor via
USB. Then the monitor compares the color difference
and generate 3DLUT and calibrate itself automatically.
Calibration time: X-rite i1 15min, Specbos 1211 45min
Calibration result: ∆E≤1.0
Audio/Video Zero Latency
Support Zero latency mode (less than 1/100 frame) for lip-sync monitoring.
HDR/SDR De-log LUTs
The monitor has built-in multi camera logs
to HLG1000, PQ1000 or Rec 709 SDR conversion LUTs, including Log-C, C-log, S-log2,
S-log3, V-log, J-log1, RedLogFilm etc.
You can also upload User LUTs to monitor
by USB disk, support 17x17x17 3DLUT cube
files.
Multiple Video Analysis Patterns
Audio Patterns
Max 16-ch embedded audio meters display,
and select any 2 channels audio to output via
speaker or 3.5mm headphone socket.
Moreover, BM-H monitors support Lissajous
figures and 5.1 & 7.1 surround sound patterns.
Eye Pattern
Built-in eye pattern to check input video transmission
quality via SDI cable, especially the 12GSDI quality.
Webserver IP Remote Control
BM-H245 supports webserver remote control by
Ethernet LAN connection.
Use computer web browser to open the monitor
control panel, and select input sources, adjust picture
parameters, set up video / audio functions and assign
function keys, etc, without install any APP.
Power Supply
BM-H245 consumes 60W power, supports
both AC 100-240V input and 4-pin XLR DC
12-17V input, and equipped with a V-mount
battery plate on the rear panel. (Gold mount
for option)
LCD Performance
Size | 23.8 inches |
Display area | 527.04×296.46mm |
Resolution | 1920×1080 |
Aspect ratio | 16:9 |
Brightness | 400nits |
Contrast | 1000:1 |
Color depth | 10-bit |
Signal process | 18-bit |
Viewing angle | 178°(H) /178°(V) |
Input
BNC ×1 | 12G/6G/3G/HD/SD-SDI input |
BNC ×3 | 3G/HD/SD-SDI input |
HDMI® ×1 | HDMI® 2.0 input |
RS485 ×1 | TSL 3.1/4.0 UMD input |
RS485 ×1 | GPI (Tally) input |
RJ45 ×1 | 1000M Ethernet input for Webserver IP control |
Output
BNC ×1 | 12G/6G/3G/HD/SD-SDI loop output |
BNC×1 | 3G/HD/SD-SDI input |
RS485 ×1 | TSL 3.1/4.0 UMD output |
Analog audio | 3.5mm headphone and speaker |
Video Format
SDI 1 | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080i (50 / 59.94 / 60) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94), 576I (50) | |
SDI 2/3/4 | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94), 576I (50) | |
Quad Link 4K (Each channel) | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
HDMI® | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) |
General
Input voltage | DC 12V-17V, AC 100-240V, 50/60Hz |
Power consumption | 60W |
Working temperature | 0°C～+50°C |
Working humidity | 10%～90% |
Storage temperature | -15°C～+60°C |
Storage humidity | 10%～90% |
Dimensions | 580.9×392.3×73.6mm |
Net weight (main body) | Net 6.7kg; With package 10.65kg |
MSRP
MSRP
MSRP
-

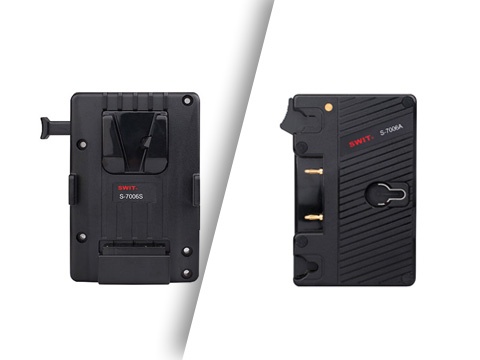

V-mount or Gold mount plate
-

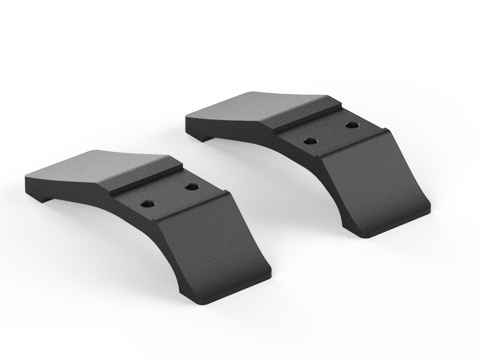

Desktop feet
-
