› 14.4V/28.8V Bi-voltage auto switch
› Power normal 11-16.8V equipment
› Power high 22-33.6V equipment
› Charge by normal 16.8V chargers
› 260Wh capacity, 350W constant load
› 6A fast charging support
› 8-LED remaining time indicators

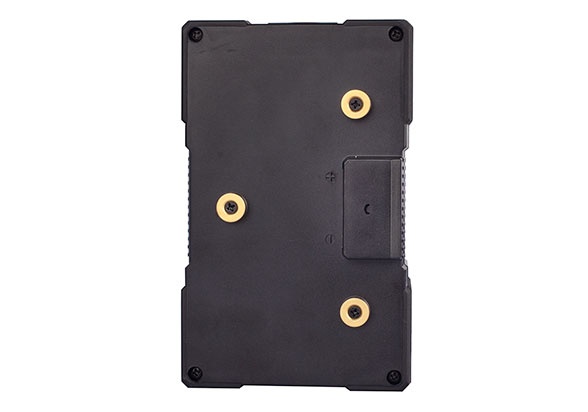

› Normal Gold mount connection
› 1.5m drop-off proof
› Multiple circuit protections

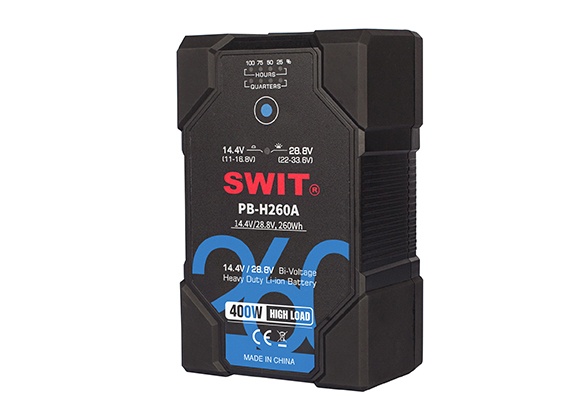

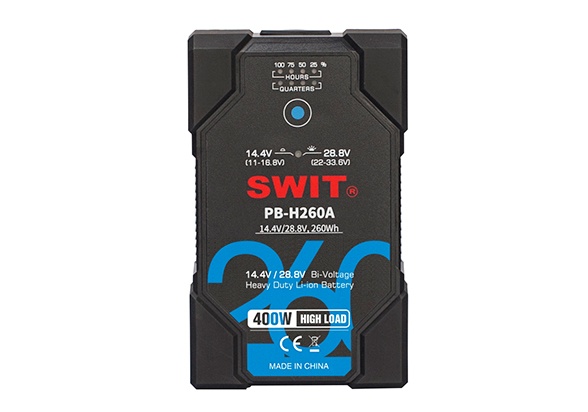

14.4V/28.8V Bi-Voltage
Auto detect and switching
Many high power film devices are designed 22-33.6V
high power input, to reduce current. If a standard Gold mount battery output high voltage directly, it will
damage normal 14.4V voltage devices.
SWIT innovative “Bi-voltage” battery adopts standard
Gold mount, and output 11-16.8V normal voltage or
22-33.6V high voltage by automatic recognition and
switching, and compatible for all normal voltage
chargers, safe and reliable.
Active 22-33.6V output
By SWIT TD-R210A adaptor
PB-H260A will detect SWIT dedicated Gold mount plate and
output 22-33.6V high voltage.
With TD-R210A Dual Batteries Light Stand Adaptor,
PB-H260A will output 22-33.6V, and 2x PB-H260A can
output Max 48V/500W, for Skypanel S60/S120 and Orbiter 100% output.
260Wh Capacity
400W High Load
PB-H260A consists of 24pcs high class 18650 battery
cells, and reaches 260Wh high capacity.
On 11-16.8V output, the Max constant load is 250W;
On 22-33.6V output, the Max constant load is 400W
To drive high power cine camera and lights, and the high
load battery will have longer life time than normal battery
if always under full load power.
6A Fast Charging
Using SWIT S-3812A fast charger
PB-H260A supports 6A fast charging by SWIT PC-P461A fast charger, to save up to 60%
charging time, can be charged from 0 to 80%
after 2 hours 15 minutes, and fully charged
within 4 hours.

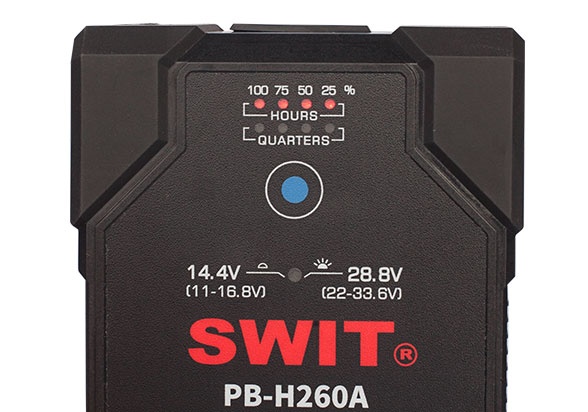

Digital Power Indicator
8-LED remaining time read
When battery is discharging:
Press "Power Check" button, Upper 4 LEDs display remaining working hours, and Lower 4 LEDs display remaining working minutes,
under current output power.
The LED will flash when remaining time is less than 15 minutes to remind changing battery.
When battery is charging:
Upper 4 LEDs flashing constantly, indicates the real-time capacity percentage 25%, 50%, 75% and 100%.
When battery is free:
Press "Power Check" button, Upper 4 LEDs light up, to indicate the remaining capacity percentage 25%, 50%, 75% and 100%.
1.5m Drop-off Proof
Dual housing + Rubber cover
PB-H260A has innovative dual housing structure: the inner cell cage
and outer anti-shock housing with rubber covers. The new structure
makes the battery quite strong, anti-shock. The battery can survive
from 1.5 meters any angles drop-off.
Discharging mode | 11-16.8V normal voltage or 22-33.6V high voltage |
Nominal voltage | 14.4V or 28.8V |
Capacity | 14.4V: 260Wh, 18Ah; 28.8V: 260Wh, 9Ah |
Max constant load | 14.4V: 250W, 20A; 28.8V: 400W, 16A |
Cell | Li-ion |
Max charging current | 16.8V, 10A |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C~50°C （Capacity and Max Load may decrease when operating below 0°） |
Dimension | 162×101×69mm |
Net weight | 1.5Kg |
