S-8110A 146Wh Gold Mount Battery Pack

›  Li-ion, 14.4V, 146Wh large capacity

›  D-tap output socket

›  4-level LED power indicator

›  Gold mount type connection

›  0.8m drop-off proof

›  Multiple circuit protections


Features

Gold Mount Camera Battery

S-8110A is the AntonBauer gold mount rechargeable Li-ion battery pack for professional video cameras.

146Wh / 10.2Ah High Capacity

Consists of 16pcs 18650 battery cells, and reaches 146Wh/10.2Ah high capacity.
Run approx 4 hours for normal 30W ENG cameras.

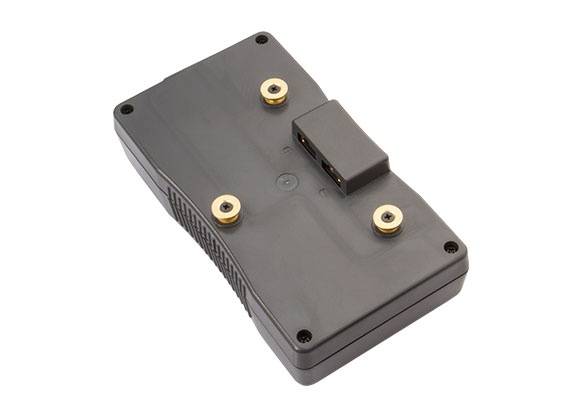

AntonBauer Gold Mount Connection

S-8110A is compatible with AntonBauer Gold mount type power system and we adopt the high quality connection bolts that ensure the reliable mounting.

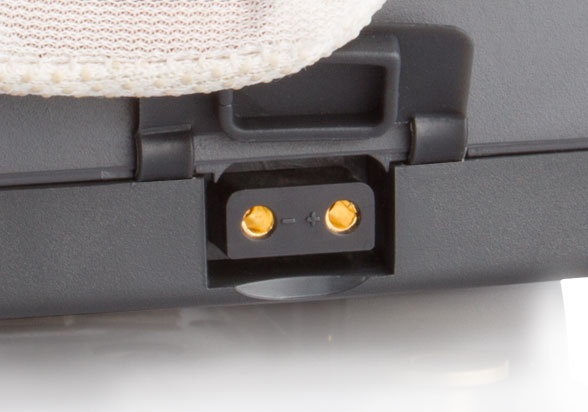

Build-in D-tap DC Output Socket

A D-tap DC output socket is equipped on the top side of S-8110A battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc.
The Max Power from D-tap is 120W, 10A.

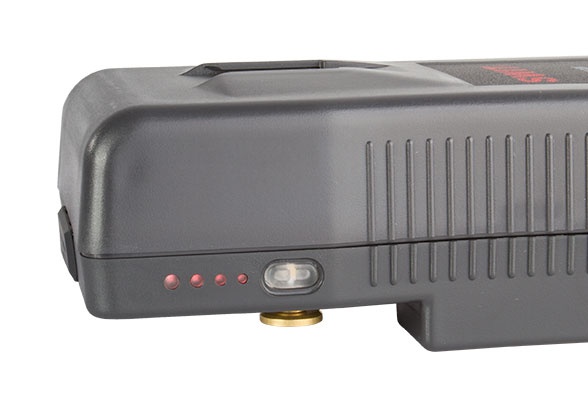

4-level LED Power Indicator

On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.

无标题文档

Nominal Voltage

14.4V

Capacity

146Wh/10.2Ah

Max output power

In total:150W

Electrodes:150W,12A
D-tap:120W,10A

Mount Type

Gold mount

Charging Temperature

0-40°C
     Discharging Temperature-20°C-50°C(Capacity and Max Load may decrease when operating below 0°

Net weight

Net 940g; With package 1kg

Dimensions

165×90×53mm
