VANGO-70 70W 1:1 Ultra Slim RGBW Panel Light

›  120pcs RGB + 200pcs White SMD-LEDs

›  Edge mounted LEDs, 21mm ultra slim

›  No fan, No noise

›  1:1 size, 70W power, 1500Lux @ 1meter

›  Time-Division drive tech, ultra bright color light

›  CCT/HSI/RGB/CIE/GEL/EFF color modes

›  Built-in 20x Rosco and 20x LEE Gels

›  2800K-10000K, G/M±1.00 adjustment

›  CRI Ra 96, TLCI 93

›  On-board 3.5-inch color LCD visualized color pick

›  DMX512 3bit/6bit/7bit color control

›  DC 11-34V wide input voltage

›  On-board V-mount or Gold mount battery plate

›  IOS/Android APP bluetooth control

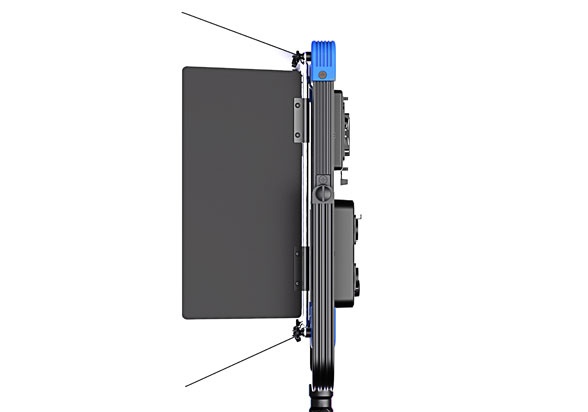

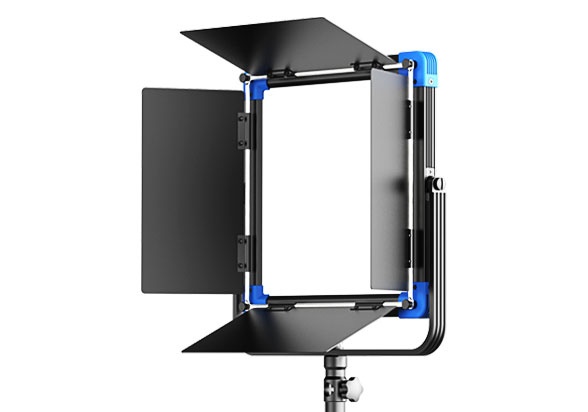

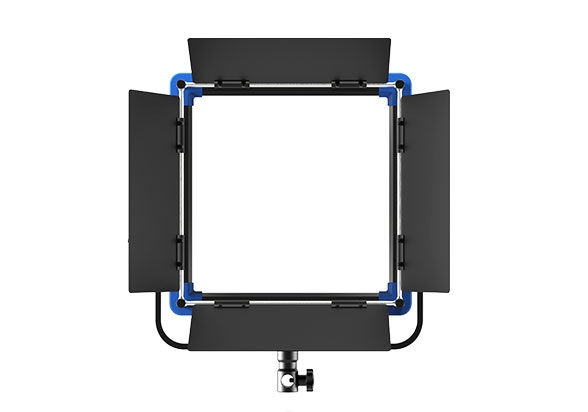

›  With 4-leaf barn door and optional 40° honeycomb


Features

70W Ultra Slim RGBW

VANGO-70, the slim portable size 70W RGBW panel with extreme high color light output, equivalent to regular 200W RGB color light intensity, for your flexible video studio setup.



21mm Ultra Slim and Soft

With SWIT unique Edge Mounted SMD and 90° high efficient light guide tech, the VANGO-70 has an ultra slim size to only 21mm thickness, and diffused to soft light to paint the entire environment.



Time Division Tech, Brighter Color Light

The regular RGB panels are high bright in CCT mode, but much lower in RGB color mode. That’ s because in a regular RGB light, the RGB color LED and White LED have fixed rates to share the total power of the light, and when output color lights, the RGB LEDs use only 1/3 power. By SWIT unique Time Division Drive tech, full power of the light can be assigned to RGB color LEDs, and greatly increased the intensity of color light. The 70W VANGO-70 color light intensity equals to a regular 200W RGB color light intensity.

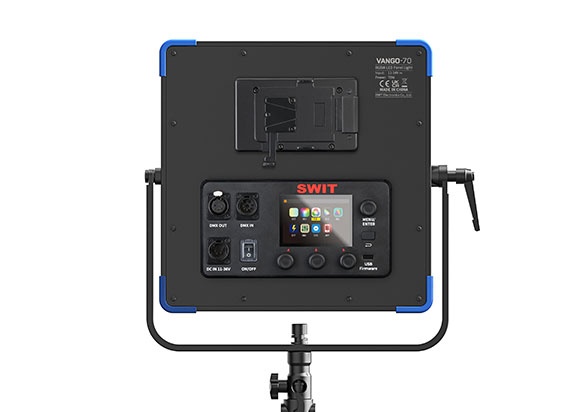

Control Panel

VANGO-70 rear control panel supports 5-pin DMX in & out, 4-pin XLR DC 11-36V in, and V-mount battery plate (Gold mount for option), and a large color LCD with menu and hot keys for convenient color picking. The USB-A port is for firmware update or user color profile upload, and to power wireless DMX receiver.

On-board 3.5-inch Color LCD

Visualized color selection



Bluetooth APP Control

Download “SWIT Console” APP on IOS App Store or Google PLAY, to connect and control VANGO lights via Bluetooth.

SWIT Console APP

The APP control supports CCT, HSI, RGB, CIE color modes, and select preset color GELs and light effects.



LED

120pcs RGB + 200pcs W SMD LEDs

illuminance

1500Lux @ 1m

Beam angle

65°

Color Temperature

2800K~10000K, G/M±1.00

CRI

96

TLCI

93

Power

70W

DMX

DMX512, 5pin XLR IN & OUT

USB

USB-A power out & firmware update

Input voltage

4pin XLR, DC 11V~34V IN

Dimension

313×313×21mm

Lighting area

255×255mm

weight

Net 4kg with barndoor; With package 7kg
Basic Package

MSRP

MSRP

MSRP

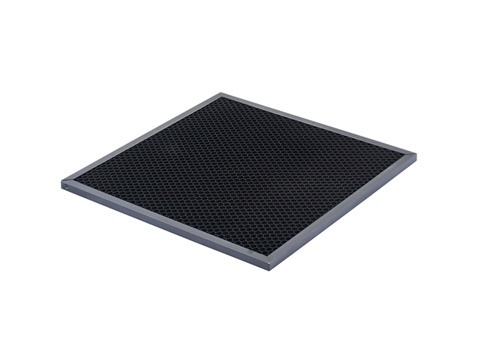

  • LA-GE60N

    Metal 40° Honeycomb, could be installed together with barndoor kit.
  • VANGO-100

    100W 2:1 Ultra Slim RGBW Panel Light

    Equivalent to 300W color light, 21mm slim, on board LCD, APP control
