› Tiny V-mount battery, Pocket fit
› 50Wh/3.45Ah fly-friendly capacity
› 100W/8A constant high load
› 1x D-tap output & charging input
› 1x Barrel DC Regulated 8.4V output
› 1x USB-A 5V/2A output
› 1x USB-C 30W input & 65W output
› LED remaining runtime display
› BMS multiple circuit protections
Meet All Your Expectations
The OMNI series are the new mini-size pocket
V-mount camera batteries with LED power info
display and versatile DC interfaces including 65W
USB-C and 8.4V DC barrel.
The sleek design adds a touch of sophistication to
your gear, making a statement on set or in any professional environment.
Slim 50Wh Capacity
OMNI-50S consists of 4 high capacity cells,
with 50Wh/3.45Ah high capacity, and support
at least 100W/8A constant high load output,
for camera and accessories together.
Mini-Size, Pocket Fit
With the OMNI battery, V-mount power is now
pocket-sized, allowing you to focus on capturing the
perfect shot without the burden of bulky equipment,
and empowering filmmakers to unleash their
creativity wherever inspiration strikes.
Sanyo 3450mAh Class-A Cells
This OMNI batteries use Sanyo highest grade of 18650
Li-ion cells, 3450mAh capacity, the flagship power cell,
to ensure the unparalleled quality and reliability.
Power Up under -20°C Enviroment
The OMNI battery cells featured cold-resistant and with SWIT's unique
low-temperature cold startup process, allows for normal
discharge even in extreme cold environments as low as -20°C, perfect
for filming in freezing regions, guaranteeing a dependable power source
even in the most severe conditions.
Versatile DC Sockets
The mini-size OMNI battery never compromises
on interfaces. It provides the richest DC power
sockets including USB-A, USB-C, 8.4V Barrel DC,
and 14.4V D-tap, allowing various cameras and
accessories to be powered simultaneously.
USB-C to Power Cameras
The USB-C output of the OMNI battery can power
many mirrorless cameras, providing several times
the runtime of the small internal battery.
It’ s compact size, lightweight, and easy to install,
perfect for handheld shooting.
8.4V Barrel DC Output
The 14.4V OMNI battery also provides a
5.5/2.1mm barrel DC socket of regulated DC
8.4V / 3A output for camera-top devices, and
you can also connect various dummy DV
batteries to power mirrorless cameras.
65W USB-C to Power Laptop
The OMNI-50S battery is equipped with a bi-directional
USB-C socket, outputs 5V/9V/12V/15V/20V(Max) 3.25A,
65W high power for laptops, BC1.2, QC2.0/3.0, FCP, SCP,
PD2.0/3.0 protocols universally compatible.
The battery can also be charged by USB-C charger of PD2.0/3.0 ≥30W power, fully charged within 2.5 hours.
Power Info Display
The LED screen displays power percentage and remaining
runtime. The unique touch sensitive button can eliminate
any disturbance caused by touching the battery during filming.
Long-pressing this button will display battery's health level.
BMS Intelligent Multiple Protections
Keep Power Even After 10 Years of Storage
The normal batteries have stand-by power consumption of at least 10mA, and need
charging every few months, otherwise the battery life will be seriously affected.
While the SWIT OMNI batteries have ultra low stand-by power consumption, less than
0.5mA, and will reduce to ONLY 0.01mA after 10 days. So the battery will keep power
more than 10 years of storage, and you don’ t need to periodically charge the storage
batteries.
SWIT Automated Production
The OMNI battery comes from SWIT's unique fully automated production line, where each process
strictly adheres to standards, setting industry benchmarks and ensuring quality assurance.
Battery plate | V-mount |
Nominal voltage | 14.4V |
Capacity | 50Wh, 3.45Ah |
Power IN&OUT | Electrodes: 100W 8A out, 16.8V 1.7A in |
D-tap: 100W 8A out, 16.8V 1.7A in | |
| Barrel DC: 5.5/2.1mm, Reg. 8.4V 3A out | |
| USB-A: 10W, 5V/2A out | |
USB-C out: 65W, 5V/9V/12V/15V/20V(Max)=3.25A BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP USB-C charging in: USB-C to C Charger Request - PD2.0/3.0, Power ≥30W USB-A to C Charger Request - 5V only | |
Dimension | 102×74×33.5mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C |
Net weight | Net 338g; With package 450.5g |
MSRP
MSRP
MSRP
-

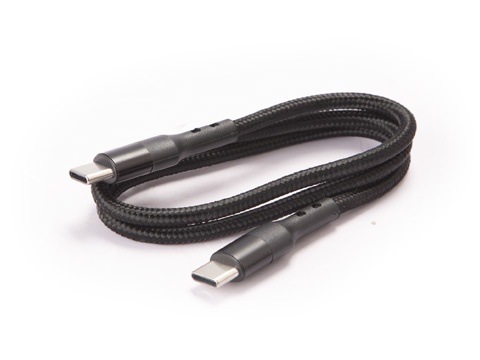

USB-C to USB-C cable (50cm)
-
