UC-2065 65W USB-C/A GaN Travel Charger

› Mini size GaN charger

› 2x USB-C and 1x USB-A simultaneous

› Max 65W power output

› Charge camera batteries with USB-C ports

› Charge Laptops, Tablets and Smart devices

› US/EU/UK interchangeable travel plugs

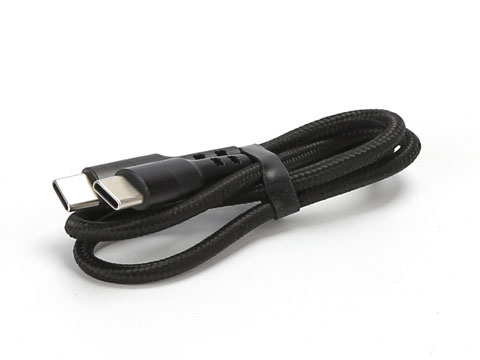

› Provide 1x USB-C to C cables

MSRP Ex TAX / Shipping

Features

65W GaN Portable Charger

UC-2065 is a USB-C & A travel charger with GaN (Gallium Nitride) tech which is physically smaller and lighter weight than regular silicon chargers, and able to conduct far higher power and keeps heat to a minimum.

2× USB-C + 1× USB-A Outputs

UC-2065 charger provides 2x USB-C and 1x USB-A ports simultaneous out. The power output of each port would be limited if multiple ports are used together, Max 65W.

Single USB-C1 65W, USB-C2 65W, USB-A 60W;
C1+C2 = 45W+20W;
C1+A = 45W+18W;
C2+A = 20W+18W;
C1+C2+A = 45W+10W+10W

Charge Camera Batteries

The following V-mount / B-mount batteries with USB-C port can be fully charged at:

V-mount OMNI-50S (50Wh): 2h 30m
V-mount OMNI-99S (99Wh): 2h 45m
V-mount MINO-S70 (70Wh): 2h 30m
V-mount MINO-S140 (140Wh): 3h 30m
V-mount MINO-S210 (210Wh): 5h
V-mount CIMO-98S (98Wh): 2h 30m
V-mount CIMO-160S (160Wh): 4h
V-mount CIMO-200S (196Wh): 4h 30m
V-mount CIMO-290S (290Wh): 6h 40m
B-mount HB-A290B (290Wh): 6h 40m

Charge Camera Batteries

The following DV batteries with USB-C port can be fully charged at:

SONY BP-U type LB-SU90C (90Wh): 2h
SONY NP-F type LB-SF65C (65Wh): 2h 30m
Panasonic VBR59 LB-PD65C (65Wh): 2h 30m
Canon BP-A type LB-CA90C (90Wh): 2h

Charge Laptops / Smart Devices

You can charge high power laptops or tablets via USB-C port, and lower power smartphones, earphones by USB-A port together, for travel carrying convenience.

International Plugs for Travel

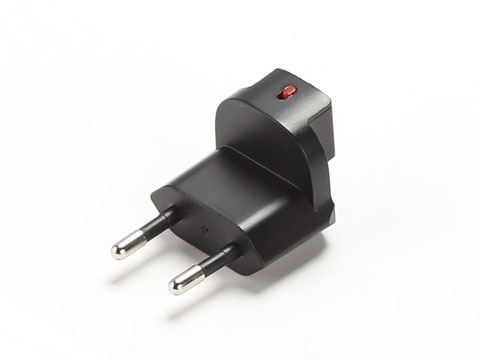

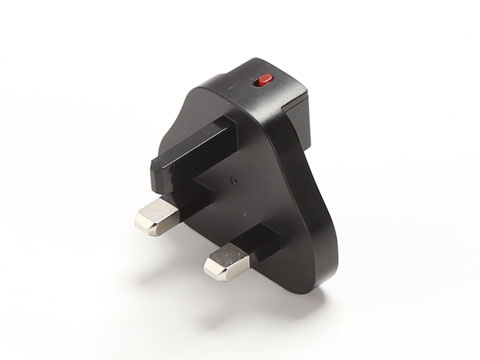

UC-2065 has a foldable US standard plug, and comes with conversion accessories for Euro and UK standards. It features a snap-in design for quick installation and replacement, wide range AC 100-240V inputs, highly convenient for global travel charging.

Full Accessories Package

The UC-2065 standard package includes all the essential accessories for worry-free travel.

Input Voltage	AC100V-240V, 1.5A, 50/60Hz
Output power	65W Max
USB-C1 or C2 only	5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A, Max 65W
USB-A only	5V/3A, 9V/3A, 12V/3A, 20V/3A, Max 60W
USB-C1 + C2	C1 Max 45W, C2 Max 20W
USB-C1 + A	C1 Max 45W, A Max 18W
USB-C2 + A	C2 Max 20W, A Max 18W
USB-C1 + C 2+ A	C1 Max 45W, C2 Max 10W, A Max 10W
Working Environment	Temp -10°C to 40°C; Humidity 10%RH to 90% RH
Storage Environment	Temp -10°C to 85°C; Humidity 10%RH to 90% RH
Dimension	73.5mm × 43.5mm × 31mm charger only 77mm × 41mm × 81mm with package
Weight	Net 100g; With package 164g
