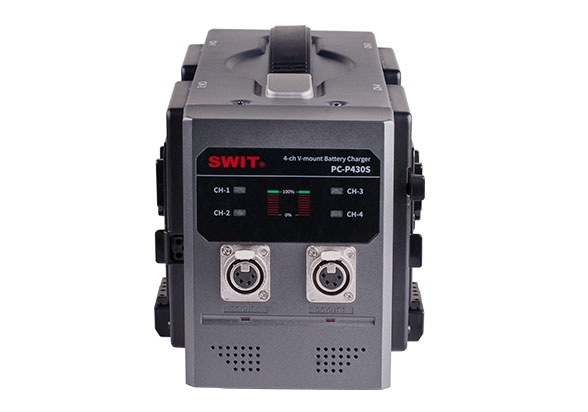

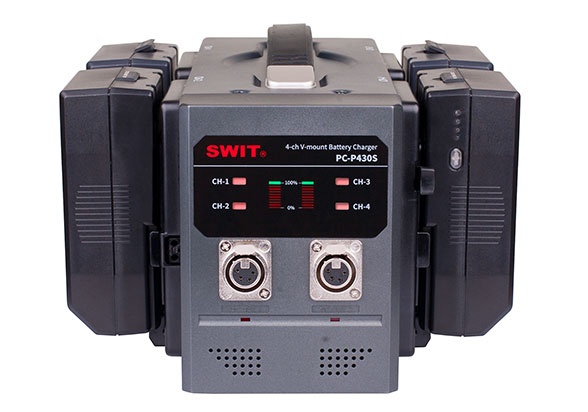

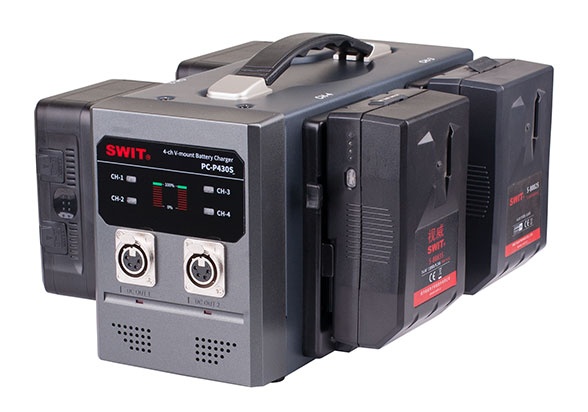

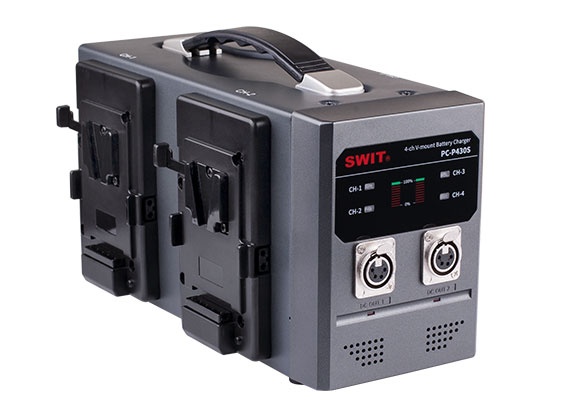

PC-P430S 4-ch V-mount Fast Charger

›  V-mount battery charger

›  4-ch simultaneous charging

›  3A per channel quick charging

›  2x 15V/6A 4-pin XLR DC output

›  LED charging indicators for each channel


Features

4-ch Simultaneous Quick Charger

For V-mount batteries

PC-P430S can charge 4pcs V-mount camera batteries simultaneously. The charging output is DC16.8V, 3A each channel.

LED Charging Indicators

The PC-P430S has LED charging indicators on the front panel, indicates the real time capacity of each channel by different colors:
Display Red: Battery is charging, capacity below 80%;
Display Yellow: Battery is charging, capacity above 80%;
Display Green: Charging finished.

AC-DC Adapting Output

PC-P430S has 2x 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 XLR female to male cable (optional purchase), the PC-P430S can be used as AC-DC adaptor of 2-ch DC 15V, 6A, 90W simultaneous output.
*Please note the AC-DC adapting output will not work when battery is charging.

Power

Max276W

Input

AC100V-240V 50/60Hz

Charging output

DC 16.8V, 3A×4

Adapting output

DC 15V, 6A×2

Dimensions

285×144×173mm

Net weight

Net 3.27kg; With package 3.8kg
Basic Package

MSRP

MSRP

MSRP

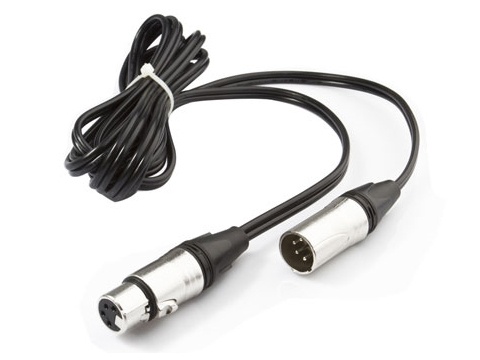

  • S-7102

    4-pin XLR female to male cable, for 4-pin DC adapting output
  • PC-P430A

    4-ch Gold Mount Fast Charger

    3A×4 fast charging current; AC-DC adapter output, LED charging indicators

  • S-3822S

    2-ch V-mount Fast Charger

    2-ch simultaneous charging, 3A fast charging, Portable, support AC-DC adaptor output

  • PC-P460S

    4x6A Super Fast V-mount Charger

    4-ch simultaneous charging with 6A super fast charging current; color LCD screen
