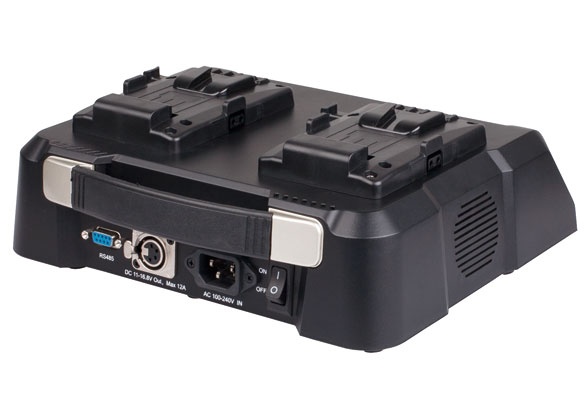

S-3812S 2-ch V-mount Super Fast Charger

› 2-ch simultaneous charging

› Identify battery type and adjust charging method

› 6A fast charging for SWIT 160Wh and above batteries

› 3A charging for other batteries

› Support AC to 4-pin XLR output

› Support battery to 4-pin XLR output

› LCD display charging/adapting info

MSRP Ex TAX / Shipping

Features

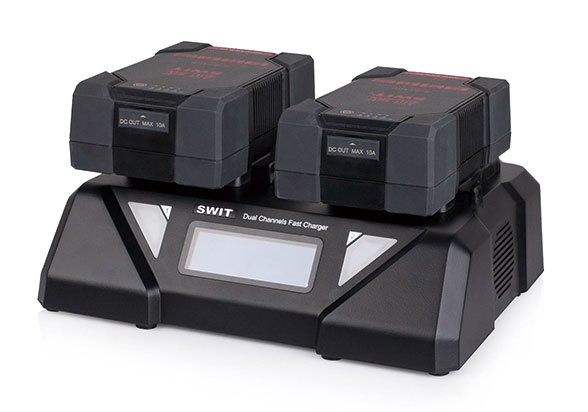

Dual-channel Fast Charger

Max charging current: 6A

S-3812S can charge 2 V-mount batteries simultaneously at Max 6A fast charging current, to SWIT ≥160Wh capacity batteries. The charging speed is quite faster than normal chargers.
And for other batteries, the charging current is limited to 3A.

Charging time comparation

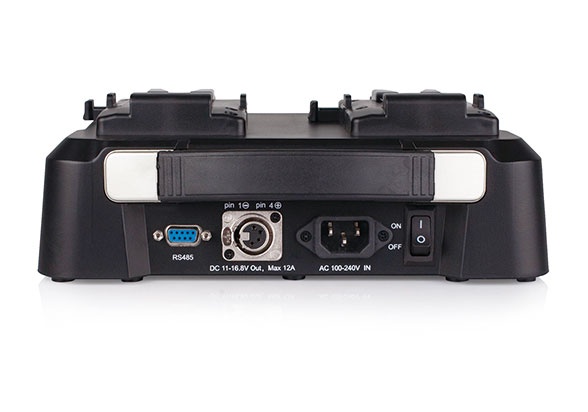

AC-DC Adapting Output

S-3812S supports 1-ch AC-DC adapting output via 4-pin XLR port. By S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to the other equipments, Max load 200W/12A.
When adapting load is less than 100W, S-3812S can still charge battery simultaneously. (2 batteries sequential) Remark: S-7102 cable is optional purchased.

Battery-DC Adapting Output

You can also mount batteries onto S-3812S, and output DC power via 4-pin XLR port. By S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to the other equipments, Max load 200W/12A.
Remark: S-7102 cable is optional purchased.

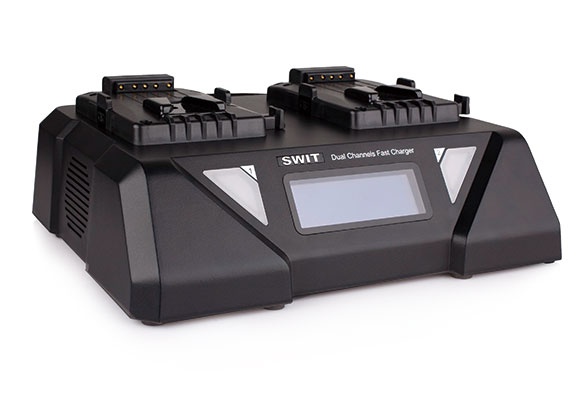

LCD Charging Info Display

S-3812S has an LCD screen to display the real time charging/adapting information, includes:
Battery Charging/Discharging status
Real time capacity and percentage
Real time Voltage/Current
Remaining time to fully charged
Remaining time to fully discharged
Battery cycle times
Adapting output current and power

Remark: The battery info display only available with digital Li-ion batteries: PB-H, PB-R, PB-S, PB-M series. For other non-digital batteries, the charger will only display real time voltage and current.

3-color LED Indicators

S-3812S has the 3-color LED indicators for both 2 channels:
Red light slowly flashes: The battery is charging
Red light fast flashes: The battery is about to fully charged
Green light constant: The battery is fully charged
Green light flashes: The battery is adapting output
Orange light flashes: Battery or Charger abnormal alert

Input	100～240VA, 50/60Hz
Power consumption	Max 260W
Charging output	DC 16.8V, Max 6A×2-ch
Adapting output	DC 16.8V, 3A×2
Working temperature	0°C～+40°C
Working humidity	10%～90%
Dimensions	272mm×246mm×97mm
Net weight	Net 1.85kg; With package 2.45kg

Basic Package

MSRP

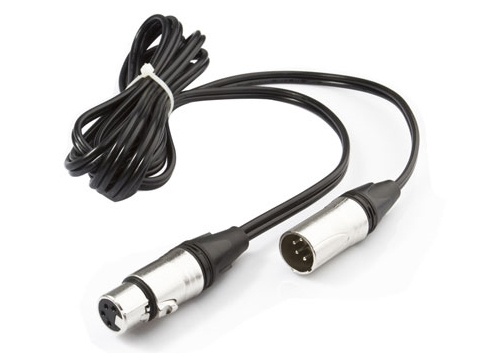

S-7102
4-pin XLR female to male cable, for 4-pin DC adapting output

MSRP€20
