› 60W super bright COB LED light
› 15°-60° Spot/Flood adjustable
› 2700K-8000K continuously adjustable
› 0-100% flick-free dimming
› Super high CRI Ra 95, TLCI 97
› DMX512 controlled color, dimmer, angle
› LCD display color, dimmer and DMX
› Silent mode by fans switching off
› LED overheat detection and protection
› 4-leaf metal barn doors
› U-shape and lighting stand mount

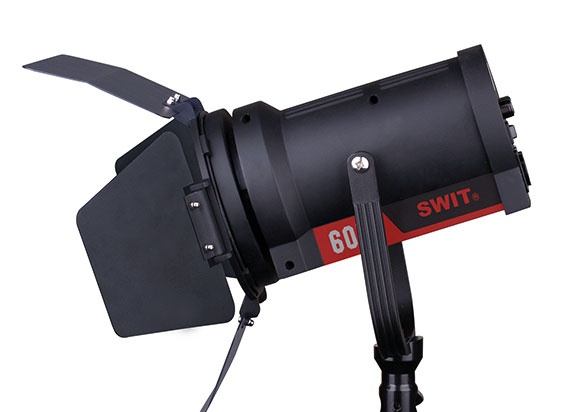

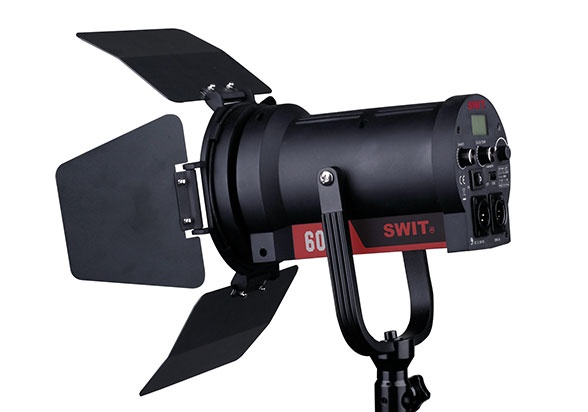

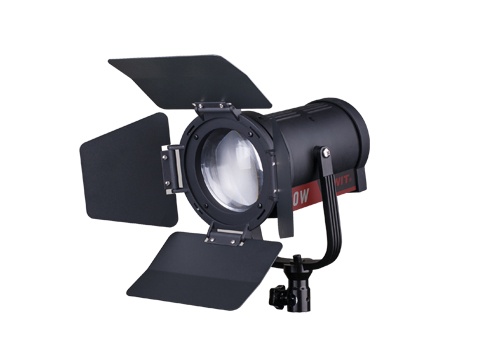

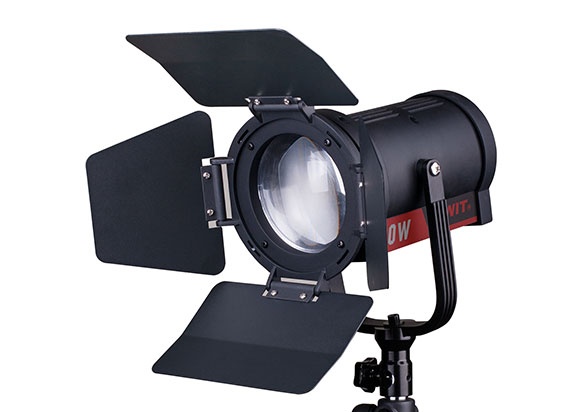

60W Portable LED Spot Light
Super bright and long-life COB-LED
FL-C60D portable LED spot light adopts Chip-On-Board LEDs
of 50,000 hours lifetime, 60W power, bi-color, DMX adjusting
focus angle, as the key light of interview light kit or field video
productions.
Spot /Flood Adjust
15° - 60° Electromotion/DMX adjust
FL-C60D outputs 15° - 60° beam angle adjusting by
Electromotion knob or DMX. The illuminance is as high
as 25000Lux @ 1 meter. The following output
illuminances at different distances are for reference:
Bi-color temperature
2700K-8000K continuously adjustable
FL-C60D COB-LED alternated with 2700K and 8000K LEDs, and the output color temperature can be continuously adjustable
between 2700K and 8000K.
Accurate Color Reveal
CRI Ra 95; TLCI 97
CRI (Color Rendering Index) is a measure of the ability of
a light source to reveal the colors of various objects
faithfully in comparison with a natural light source. And
TLCI (Television Lighting Consistency Index) is special for
the color reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while
FL-C60D offers the super high CRI at 95 and TLCI at 97,
and will not lost the object original colors.

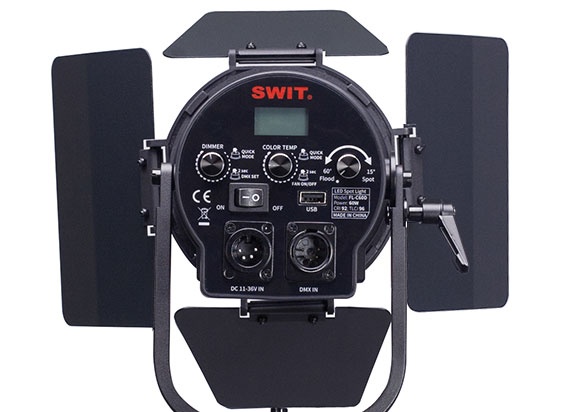

LCD Display and Control
Press knobs to enter Quick Adjusting Mode
FL-C60D has 3 knobs to control dimmer, color temperature and
spot angle. The Dimmer and Color Temperature knobs can be
pressed down to enter quick adjusting mode, and long pressed
down to enter DMX address setting and Fan on/off control.
DMX512 Channels
Dimmer, Color temperature and Spot angle
FL-C60D adopts standard 5-pin DMX input, supports
DMX512 protocol, and adjusts dimmer, color temperature
and spot angle by DMX controller.
FL-C60D occupies 3 DMX addresses:
n = Dimmer 0-100%
n+1 = Color temperature 2700-8000K
n+2 = Spot angle 15°-60°
Long press the Dimmer knob for 2 seconds, to enter DMX
address setting.
USB Power Output
To power the Wireless DMX Receiver
FL-C60D provides a 5V USB power output socket,
to power the SWIT Pocket Wireless DMX Receiver.
Refer to: LA-WR8 Pocket Wireless DMX controller
11-36V Wide Input Voltage
4-pin XLR DC input, provide V/Gold mount plate
FL-C60D supports 11-36V wide range voltage input,
with 4-pin XLR DC socket, and provides with
V-mount or Gold mount plate adaptor to fix onto
light stand, and power the light by D-tap to 4-pin
XLR DC cable.
Beam angle | 15°- 60° |
Max illuminance | 1m: Spot 25000Lux,Flood 4000Lux |
2m: Spot 6250Lux,Flood 1000Lux | |
3m: Spot 2700Lux,Flood 445Lux | |
Color temperature | 2700K～8000K |
CRI | 95 |
TLCI | 97 |
USB out | 600mA |
Power | Approx. 60W |
Working voltage | DC11V～36V |
Dimensions | 111×120×235mm |
weight | Net 2.1kg; With package 5.6kg |
Single Light Package
MSRP
3-Light Kit Package
MSRP
MSRP
-

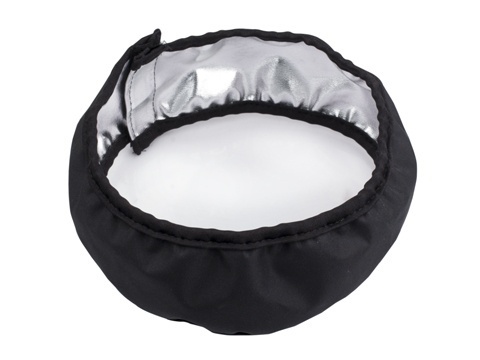

Black out cloth
-
Safety rope
-
FL-C60D Light
-

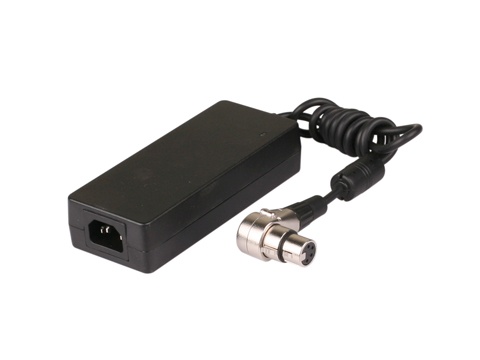

AC-DC Adaptor
-
S-7200S V-mount plate with clamp
-
S-7101 D-tap to 4-pin XLR cable
-

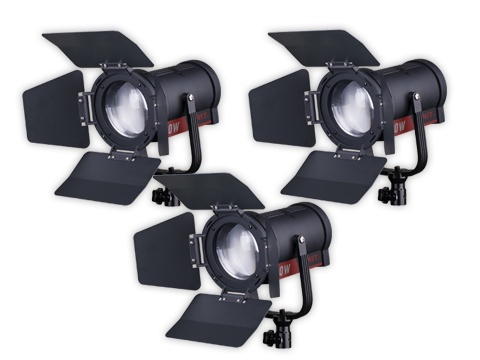

FL-C60D Light x3
-

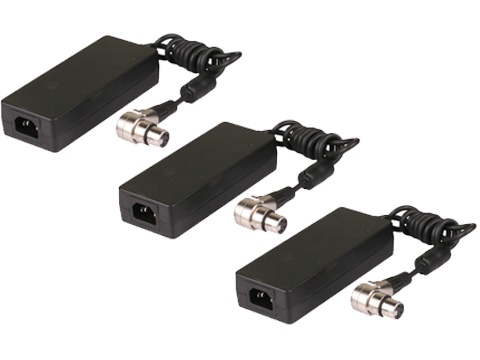

AC-DC Adaptor x3
-

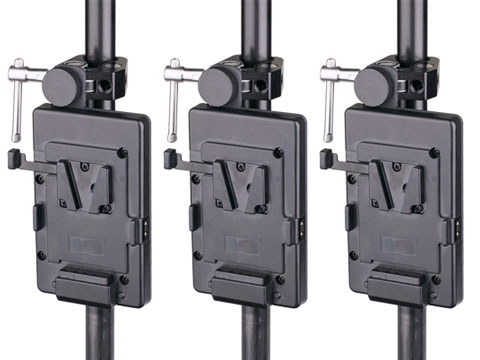

S-7200S V-mount plate with clamp x3
-
S-7101 D-tap to 4-pin XLR cable x3
-

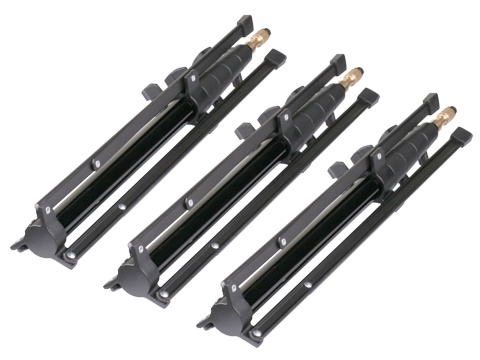

Light Stand x3
-

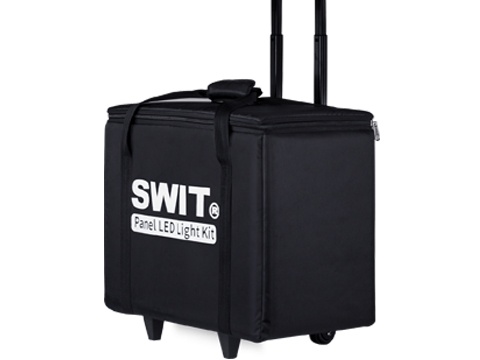

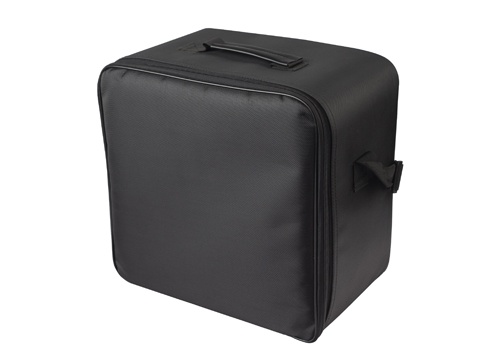

Trolley Case
-

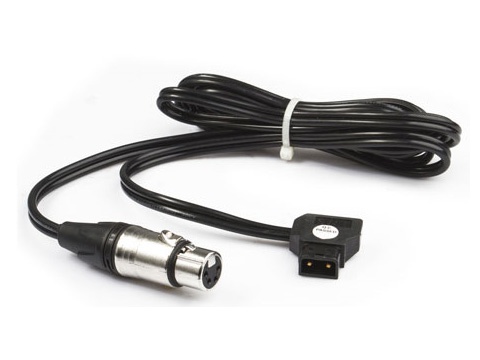

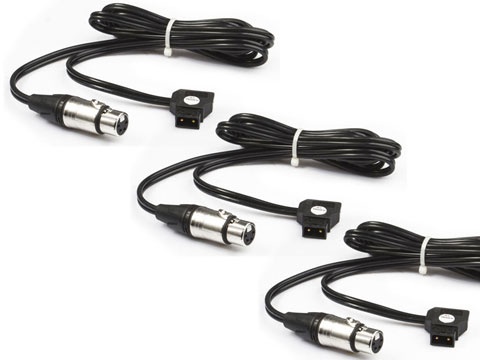

S-7101
Pluged into D-tap socket and output DC via 4-pin XLR connector -

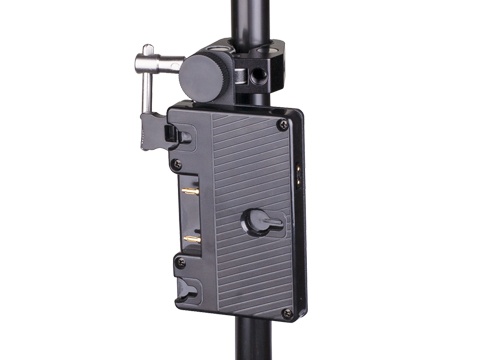

S-7200A
Gold mount plate with Clamp, to install on 25-45mm diameter C-stand / Light tripod, with 1xD-tap socket to output battery DC voltage. -

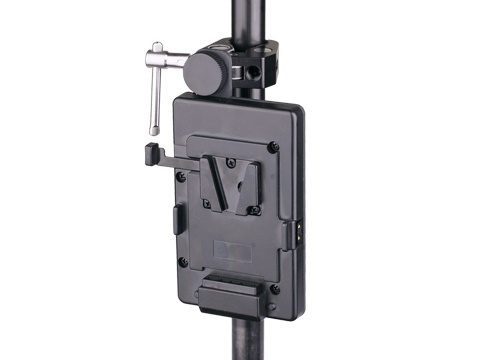

S-7200S
V-mount Plate With Clamp, to install on 25-45mm diameter C-stand / Light tripod, with 1x D-tap socket to output battery DC voltage.
