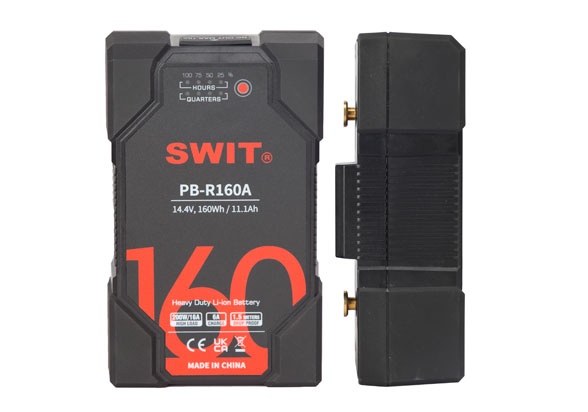

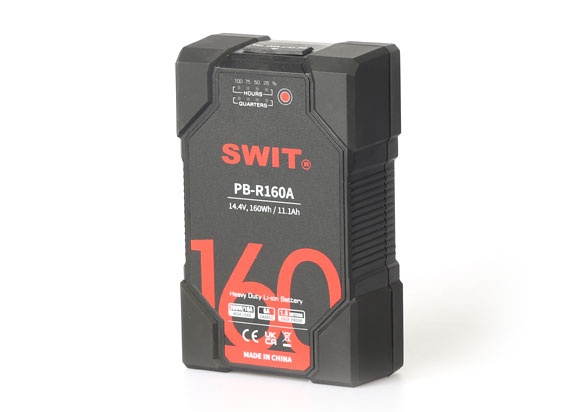

PB-R160A 160Wh Heavy Duty Battery Pack
› Strong 1.5m drop off proof
› 14.4V, 160Wh capacity
› 200W/16A constant high load
› 6A fast charging support
› 8-LED digital power indicators
› D-tap power output socket

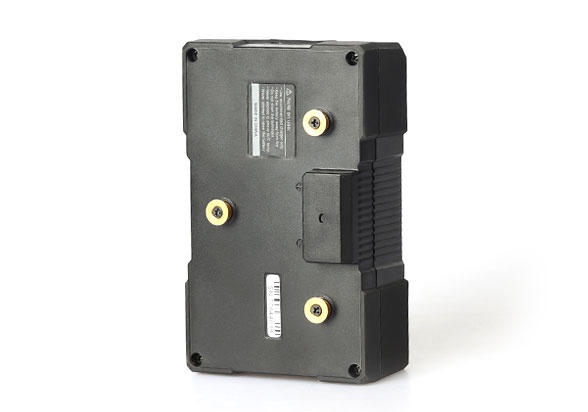

› Gold Mount installation
› Multiple circuit protections
Heavy Duty Gold Mount Battery
PB-R160A is an 160Wh Gold Mount battery,
with dual housing heavy duty structure,
1.5m drop-off proof. Featured high load, fast
charging and digital power info display for
cameras, lights and field video production
equipments.

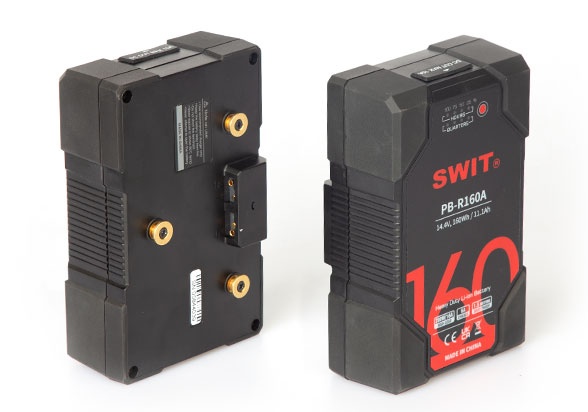

1.5m Drop-off Proof
Dual housing + Robber cover
PB-R160A has innovative dual housing structure: the inner cell cage and outer anti-shock housing with rubber covers. The
structure makes the battery quite strong, anti-shock. The battery can survive from 1.5 meters any angles drop-off.
160Wh / 11.1Ah Capacity
The largest capacity for airplane boarding
Consists of 18pcs high class 18650 battery cells, and
reaches 160Wh / 11.1Ah high capacity, which is the
largest capacity to board to airplane.
Can run approx 6 hours for normal ENG cameras, and
approx 2 hours for ARRI ALEXA.
High Load for Cine Cameras
At least 200W / 16A load
PB-R160A provides at least 200W/16A high load
even at 1% capacity, (Peak load up to 245W), to
drive high power Cine cameras and on-camera devices together. The high load cells will also ensure
battery life comparing to normal load batteries if
long time full load output.
6A Fast Charging
Using SWIT 6A fast charger
PB-R160A supports 6A fast charging by SWIT
PC-P461A fast charger, to save
more than 50% charging time. The 160Wh
PB-R160A battery can be charged from 0 to
80% after 1.5 hours, and fully charged within
2.5 hours.
8-LED Remaining Time Read
PB-R160A has the innovative 8-LED power indicators.
When free or charging, the LEDs will indicate current
capacity percentage, and when battery is discharging,
the LEDs will display the remaining running time at the
current discharging power, accurate to 15 minutes.
D-tap Socket
A D-tap DC output socket is equipped on the top side
of the battery pack, to power the other on-camera equipments together.
The Max output current of D-tap is 10A.
Nominal Voltage | 14.4V |
Capacity | 160Wh/11.1Ah |
Constant load | 200W / 16A |
Max charging current | 6A fast charging |
Mount Type | Gold Mount |
Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
Net weight | Approx 1.08kg |
Dimensions | 162×101×59mm |
