PB-R290S+ 290Wh Heavy Duty IP54 Battery Pack

›  IP54 water/dust proof

›  Strong 1.5m drop off proof

›  14.4V, 290Wh capacity

›  250W, 20A constant high load

›  6A fast charging support

›  8-LED digital power indicators

›  SONY/RED viewfinder power info display

›  D-tap power output socket

›  V-mount connection

›  Multiple circuit protections


Features

Heavy Duty Battery

High load & IP54 waterproof

PB-R290S+ is a 290Wh V-mount battery, for Cine and ENG cameras, with dual housing heavy duty sealed structure, IP54 rainproof, 1.5m drop-off proof. The battery supports high load, fast charging and digital power info display, for field applications.

IP54 Waterproof

1.5 meters drop-off proof

PB-R290S+ has dual housing sealed structure to support IP54 waterproof in rain, snow and other inclement weather. The dual housing with rubber cover is also strong enough to survive from 1.5 meters any angles drop-off.

290Wh / 20.1Ah Capacity

Consists of 24pcs high class 18650 battery cells, and reaches 290Wh / 20.1Ah high capacity.
Can run approx 11 hours for normal ENG cameras, and approx 3.5 hours for ARRI ALEXA.

High Load for Cine Cameras

250W / 20A constant load

PB-R290S+ provides at least 250W/20A high load even at 1% capacity (Peak load up to 305W), to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 24A.

6A Fast Charging

Using SWIT 6A fast charger

PB-R290S+ supports 6A fast charging by SWIT PC-P461S or S-3812S fast charger, to save more than 50% charging time. The 290Wh PB-R290S+ battery can be charged from 0 to 80% after 2.5 hours, and fully charged within 3.8 hours.

Digital Power Info

8-LED + SONY&RED viewfinder info

PB-R290S+ has the innovative 8-LED power indicators. When free or charging, the LEDs will indicate current capacity percentage, and when battery is discharging, the LEDs will display the remaining running time at the current discharging power, accurate to 15 minutes. Meanwhile, the battery pack adopts intelligent SMBUS that compatible with both SONY and RED camera info system, and can display remaining minutes on camera viewfinder.

D-tap Socket

A D-tap DC output socket is equipped on the top side of the battery pack, to power the other on-camera equipments together.
The Max output current of D-tap is 10A.

无标题文档

Nominal Voltage

14.4V

Capacity

290Wh/20.1Ah

Constant load

250W / 20A

Max charging current

6A fast charging

IP class

IP54

Mount Type

V-mount

Charging Temperature

0-40°C
      Discharging Temperature-20°C-50°C(Capacity and Max Load may decrease when operating below 0°

Net weight

Net 1.51kg; With package 1.65kg

Dimensions

162×101×69mm
Basic Package

MSRP

MSRP

MSRP

  • PC-P430S

    4-ch V-mount Fast Charger

    3A×4 fast charging current; AC-DC adapter output, LED charging indicators

  • S-3812S

    2-ch V-mount Super Fast Charger

    2-ch simultaneous charging, Max 6A fast charging, support AC-DC and Battery-DC adaptor output, LCD display working status

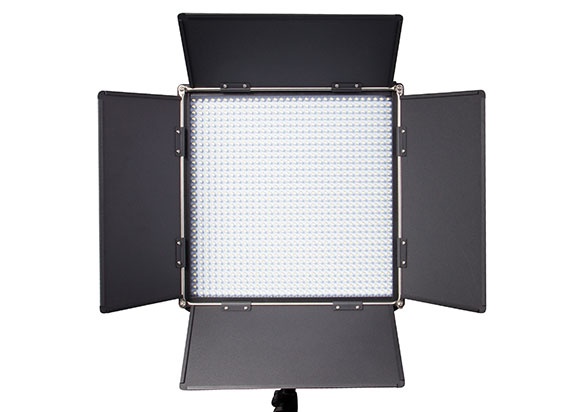

  • S-2120DA

    1024-LED Daylight Panel LED Light

    70W, 5100Lux LED, 5600K with 3200K filter, dimmerable, AC-DC adaptor power or Gold mount battery power

  • S-7500P

    Panasonic VBD & CGA Dummy Battery Adaptor

    Dummy battery with pole-tap DC cable connector; Panasonic VW-VBD58, D54/D28 type, for S-3602P adapting output to camera

  • S-7111

    D-tap to USB adaptor

    Connect to battery D-tap socket, convert to USB and extend another D-tap output.

  • PL-E60P

    60W IP54 waterproof SMD Panel LED Light

    320pcs SMD LEDs, DMX control, 1500Lux@1m bright, 2700K-6500K

  • PL-E90P

    90W IP54 waterproof SMD Panel LED Light

    480pcs SMD LEDs, DMX control, 2200Lux@1m bright, 2700K-6500K

  • PB-R160S+

    160Wh Heavy Duty IP54 Battery Pack

    200W/16A load, IP54 waterproof, 1.5m drop-off proof, 6A fast charging
