› 170pcs RGB + 340pcs White SMD-LEDs
› 1:1/2' mini size for low ceiling studio install
› 100W power, 3000Lux @ 1meter
› No fan, No noise
› Time-Division drive tech, ultra bright color light
› CCT/HSI/RGB/CIE/GEL/EFF color modes
› Built-in 20x Rosco and 20x LEE Gels
› 2800K-10000K, G/M±1.00 adjustment
› CRI Ra 96, TLCI 93
› On-board 3.5-inch color LCD visualized color pick
› DMX512 3bit/6bit/7bit color control
› IOS/Android APP bluetooth control
› PowerCON TRUE1 AC in and loop out
› 4-leaf metal barn doors and Yoke bracket
Mini Size 100W RGBW Panel
CL-M100C is an 100W RGBW SMD LED panel light of
1: 1/2 mini size designed, high intensity and fanless,
for broadcast studio, live entertainment, theater, film
applications, especially the low celling space setup.
3000 Lux @ 1 meter
With 170pcs RGB LEDs and 340pcs White LEDs, CL-M100C provides 100W light output, 3000Lux luminance at 1 meter distance, 62° half-peak wide beam angle, 2800K-10000K continuously adjustment and G/M ±1.00 support. 0 to 100% PWM digital dimming, smoothly and non-flickering.
Time Division Tech, Brighter Color Light
The regular RGB panels are high bright in CCT mode, but much lower in
RGB color mode. That’ s because in a regular RGB light, the RGB color
LED and White LED have fixed rates to share the total power of the light,
and when output color lights, the RGB LEDs use only 1/3 power.
By SWIT unique Time Division Drive tech, full power of the light can be
assigned to RGB color LEDs, and greatly increased the intensity of color
light. The 100W CL-M100C color light intensity equals to a regular 300W
RGB color light intensity.
No Fan, No Noise
The large size fin consender inside
CL-M100C ensures 100W high bright
output within such a small size housing,
no fan, no noise, to provide a silent video
production environment.
Control Panel
CL-M100C rear control panel supports 5-pin DMX in
& out, and a large color LCD with menu and hot keys
for convenient color picking. The USB-A port is for
firmware update or user color profile upload, and to
power wireless DMX receiver.
On-board 3.5-inch Color LCD
Visualized color selection
Bluetooth APP Control
Download “SWIT Console” APP on IOS App Store
or Google PLAY, to connect and control CL-M100C lights via Bluetooth.
SWIT Console APP
The APP control supports CCT, HSI, RGB, CIE color modes, and select preset color GELs and light effects
PowerCON TRUE1 AC IN & OUT
CL-M100C adopts PowerCON TRUE1 AC connectors, and supports
AC loop output to the next lights, for convenient studio installation.

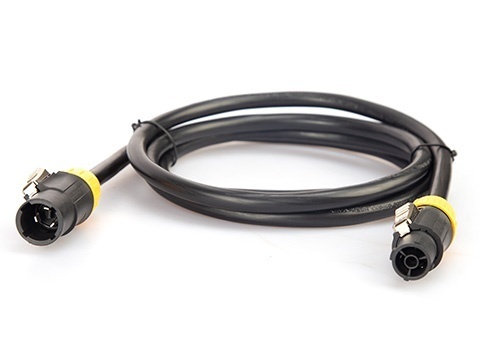

The standard package includes a PowerCON AC cable, and the loop
cable PA-LC20 is for optional purchase, 2 meters length, 16A load,
will loop more than 25x CL-M100C lights under 220V AC voltage, and
13x CL-M100C lights under 110V voltage.
LED | 170pcs RGB + 340pcs W |
Illuminance | 3000Lux @ 1m |
Beam angle | 62° half peak |
Color Temperature | 2800K～10000K, G/M±1.00 |
CRI | 96 |
TLCI | 93 |
Power | 100W |
USB | USB-A power out & firmware update |
DMX | DMX512, 5pin XLR IN & OUT |
AC Power | PowerCON TRUE1 AC 100-240V 50/60Hz input & output |
Dimension | 275×175×130mm |
Lighting area | 245×146mm |
weight | Net 5.1kg With package 7kg |
