› 280pcs high power long-life SMD LEDs
› 45° lens on each LED, intense hard light
› 2x1' size, 300W, 47000Lux @1m ultra bright
› No fans, no noise
› Linear, Log, Exponential, S- dimming curves
› 2700K-6500K continuously adjustable
› Color rendering CRI 96, TLCI 99, SSI(D55)75
› DMX512 controlled color and dimmer
› LCD display color and dimmer value
› PowerCON True1 AC in and loop out
› 3-pin XLR DC 48V in
› Protection grade IP20
› 4-leaf metal barn doors and Yoke bracket
› Optional Honeycomb/Softbox/Pole-operated Yoke
300W Hard Ultra Bright Studio Panel
PL-S300H is a 300W 2:1 Bi-color LED light, with dedicated 45° lens on each high power SMD LED, extremely
high output to 4,7000Lux @ 1m, specifically for large scale broadcast studios, film sets, and event stage lighting.
Dedicated Fly-Eye and Scale Surface 45° Lens
SWIT unique compound optical structure on each LED, with fly-eye and 45° reflector, to enhance the diffusion effect of the lens, reducing color aberrations such as macular degeneration. 45° half-peak beam angle is specifically designed for studio installation, balancing high illuminance and uniformity of the light spot.
47,000Lux @ 1m Extremely High Bright
The 300W hard light produces extremely high illuminace of 47,000Lux @1m, 45° half-peak,
applied for head light, key light, and background light in large-scale studios, conference hall,
etc.
No Fan, No Noise
With SWIT's unique heat dissipation design, this
high-power studio light utilizes passive cooling
structure, can be full-power operated without
the need for fans, ensuring zero noise in the
studio environment.
2700K-6500K Continuously Adjustment
PL-S300H consists of 300W 2700K LEDs and 300W 6500K LEDs, and can be continuously
adjusted between 2700K and 6500K, and output 300W power at any color temperature.
Accurate Color Render
CRI 96; TLCI 99; SSI(D55) 75
These high color rendering indexes ensure that objects illuminated by the
light retain their true colors, both to the human eye and in camera lenses.
Dimming Curves Selection
PL-S300H offers 4 dimming curves: linear, exponential,
logarithmic, and S-curve for selection, enabling precise
and smooth dimming control.
DMX, AC / DC Interfaces
PL-S300H provides 5-pin XLR DMX512 in & out, and
supports USB-A 5V out to power wireless DMX receiver.
The light provides PowerCON True1 AC in and loop out for
serial connection in the studio project, and also support
3-pin XLR DC48V power input for field application.
LCD Display and Menu Operation
Accessing the menu allows users to separately set the DMX addresses for dimmer and color temperature, select and
configure lighting effects, choose dimming curves, and support system reset, USB firmware upgrades, and more.
Optional Accessories
LED | 280pcs SMD LEDs with lens |
illuminance | 47,000Lux @ 1m |
Beam angle | 45° half peak |
Color Temperature | 2700K ～ 6500K |
Color Render | CRI 96; TLCI 99; SSI (D55) 75 |
DMX | 5-pin XLR IN & OUT |
Input Voltage | PowerCON True1 AC100-240V IN & OUT 3-pin XLR DC 48V IN |
Power | 300W |
IP Rating | IP20 |
Dimension | 543×301×100mm |
Lighting area | 484×242mm |
weight | Net 9.74kg |
MSRP
MSRP
MSRP
-

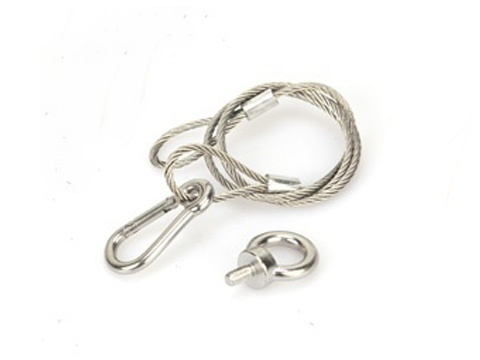

Safety rope
-

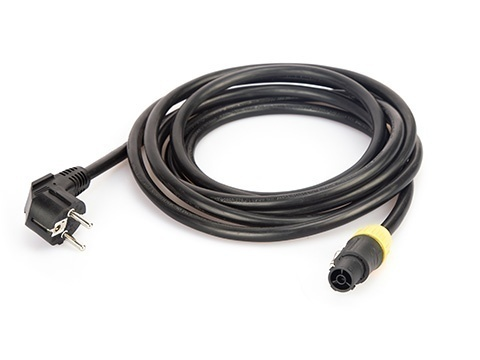

PowerCON TRUE1 AC cable
-

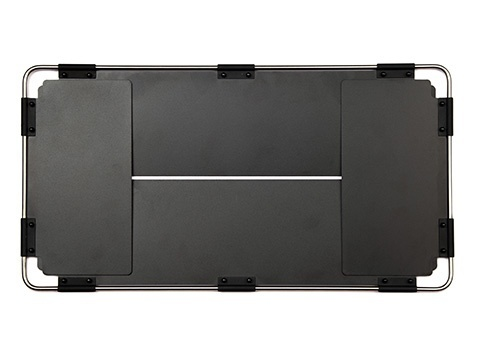

Barn door kit
-

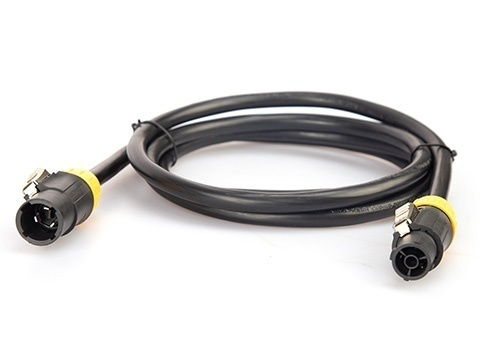

PA-LC20
PowerCON TRUE1 loop out cable, 2meters, 16A load -

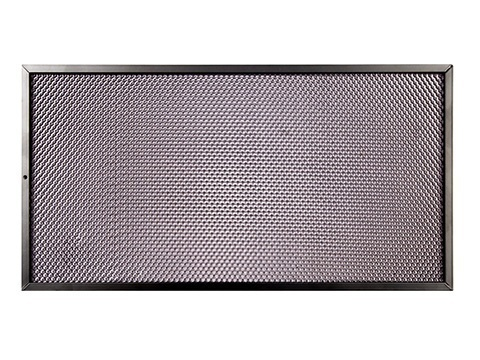

LA-GS150
40° HoneyComb, to replace the standard barndoor kit, quick assemble and disassemble. -

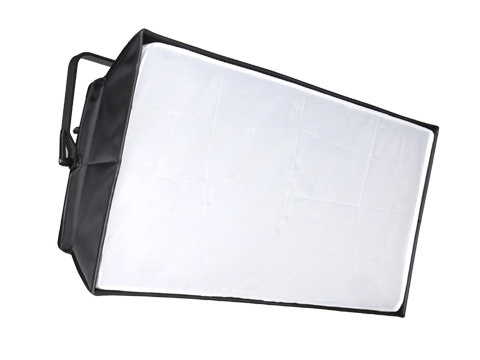

LA-BX300
60° Softbox diffuser, 15000Lux@1m on PL-S300H -

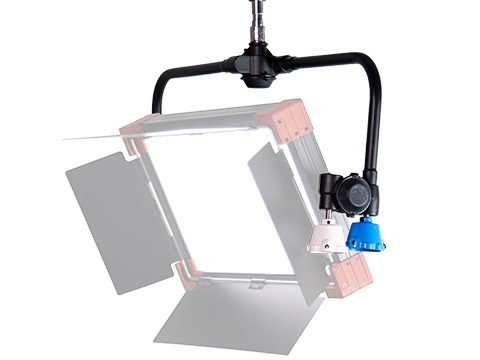

LA-POS150
2 control cups for pan and tilt, 5/8" baby-pin female & 1-1/8" junior pin male head. Compatible with PL-S150D, PL-S300D, PL-S300H
-
