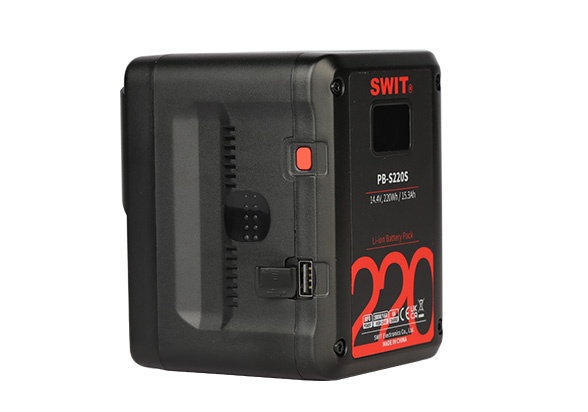

PB-S220S 220Wh Multi-sockets Square Digital Battery Pack

› Square shape design for Cine-cameras

› At least 200W, 16A constant load

› 4× D-tap output sockets

› 1× USB 5V/2A power output sockets

› All 4x D-tap support charging input

› 6A super fast charging

› OLED display accurate remaining run time

› Display power info in both SONY & RED

› Multiple circuit protections


Features

Square shape design for Cine-cameras

PB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with most of the Cine-cameras.

220Wh / 15.3Ah Capacity

Consists of 24pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 220Wh / 15.3Ah high capacity. Can run approx 7 hours for normal ENG cameras and approx 2.5 hours for ARRI ALEXA.

High Load for Cine Cameras

At least 200W / 16A load

PB-S220S provides at least 200W/16A high load even at 1% capacity, to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output.

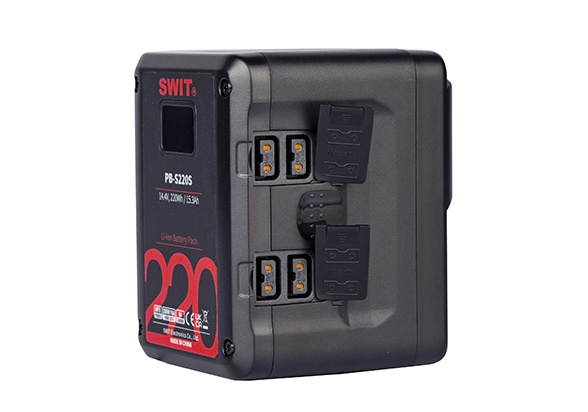

4× D-tap, 1× USB

PB-S220S provides 4x D-tap output sockets with 10A/120W load, and all of them support charging input. The USB-A socket outputs 5V 2A.

6A Super Fast Charging

Using SWIT super fast charger

PB-S220S supports 6A fast charging by SWIT S-3812S or PC-P461S fast charger, to save up to 60% charging time. The 220Wh PB-S220S battery can be charged from 0 to 80% after 2.3 hours, and fully charged within 3.5 hours.

Digital Power Info

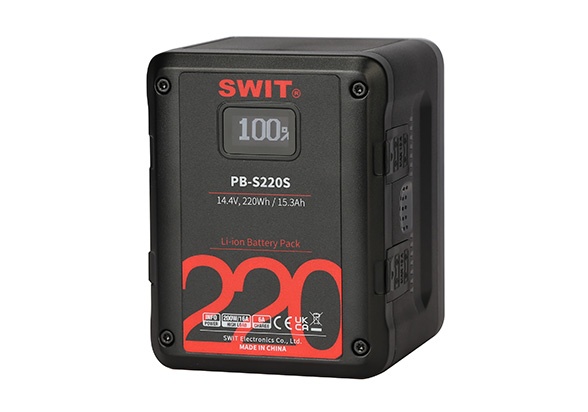

OLED display accurate remaining run time

The build-in OLED can displays remaining power percentage, remaining working time, and battery cycle times, and support viewfinder info display on both SONY and RED cameras.

Battery Protection Display

When any over load, over charging, short circuit, high/low temperature detected, the battery will protect itself and display protection information. You can take steps to re-active battery, to ensure the best battery condition and prolong battery life.

Model

PB-S220S

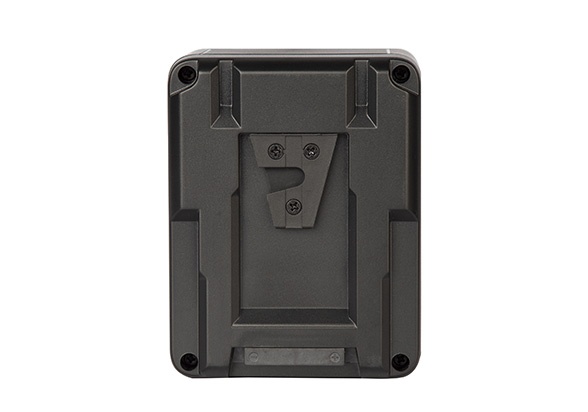

Battery plate

V-mount

Nominal voltage

14.4V

Capacity

220Wh,15.3Ah

Max output

In total: 200W

Electrodes: 200W,16A

USB:10W, 5V/2A
D-tap: 120W / 10A

Dimension

121×95×96mm

      Charging Temperature0-40°C
      Discharging Temperature-20°C-50°C(Capacity and Max Load may decrease when operating below 0°

Net weight

Net 1.44kg; With package 1.55kg

Max charging current

6A

D-TAP socket number

4

USB socket number

1
Basic Package

MSRP

MSRP

MSRP

  • PC-P430S

    4-ch V-mount Fast Charger

    3A×4 fast charging current; AC-DC adapter output, LED charging indicators

  • PC-U130B2

    Portable Dual D-tap Heads Fast Charger

    Ultra portable 3A charging via battery D-tap sockets

  • S-3812S

    2-ch V-mount Super Fast Charger

    2-ch simultaneous charging, Max 6A fast charging, support AC-DC and Battery-DC adaptor output, LCD display working status

  • S-7005S

    Gold mount to V-mount battery Adaptor

    Adapt V-mount batteries to Panasonic gold mount cameras; D-tap DC socket

  • S-7104

    D-tap to Pole-tap DC Cable

    Pluged into D-tap socket and output DC via 5.5mm pole-tap

  • S-7100S

    V-mount to 4-pin XLR DC Cable

    Attached to V-mount battery pins and output DC via 4-pin XLR connector

  • PC-P460S

    4x6A Super Fast V-mount Charger

    4-ch simultaneous charging with 6A super fast charging current; color LCD screen
