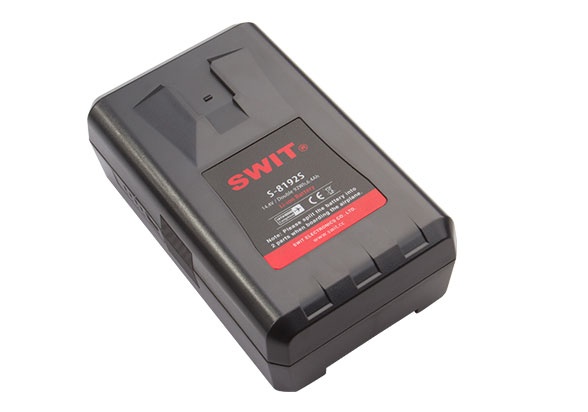

S-8192S 92+92Wh Dividable V-mount Battery Pack
› Divide into 2 parts of 92Wh capacity each (Patent)
› Not restricted by IATA air transportation regulations
› Li-ion, 14.4V, 92+92Wh capacity
› D-tap output socket
› 4-level LED power indicator
› V-mount connection
› Multiple circuit protections
Large Capacity Battery, IATA Comply

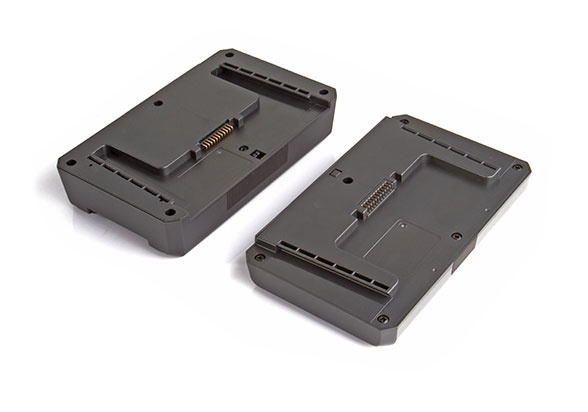

Patented dividable battery design
The IATA DGR regulations restricted the air transportation of over 100Wh Li-ion
battery packs. SWIT provides the solution of Dividable Battery to comply with IATA regulations. S-8192S can be divided into 2 parts, and each part contains 92Wh capacity, not restricted by air
transportation. And when using S-8192S, just assemble the 2 parts, you can get
a Li-ion battery pack of 184Wh large capacity.
184Wh / 12.8Ah High Capacity
When assembled, the S-8192S consists of 20pcs 18650 battery
cells, and reaches 184Wh / 12.8Ah high capacity. S-8192S
can run approx 6 hours for normal 30W ENG cameras, and has no
problem to fly with.

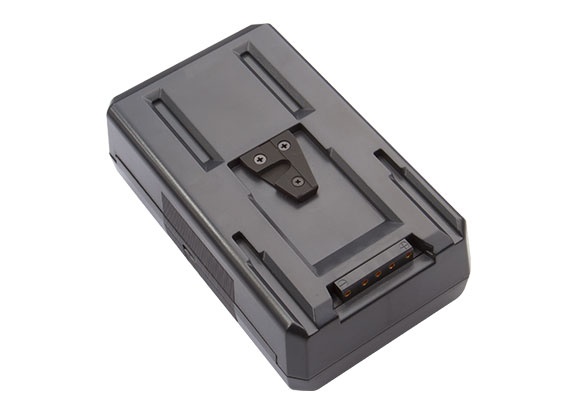

Reliable V-mount Connection
S-8192S is the standard V-mount connection and we adopt the high quality fiber glass V-wedge that ensures the reliable mounting.
Build-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the top side of S-8192S
battery, for DC14.4V (Nominate) connection, such as on-camera
lights, monitors, wireless transmitter, etc. The Max Power from D-tap
is 100W, 8A.
4-level LED Power Indicator
On the side of the battery, there’re 4-level LED power indicators
to check the battery remaining capacity. You can get a quick view
of capacity before using.
Nominal Voltage | 14.4V |
Capacity | 92+92Wh/6.4+6.4Ah |
Max output power | In total:100W |
| Electrodes:100W,8A | |
| D-tap:100W,8A | |
Mount Type | V-mount |
Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C（Capacity and Max Load may decrease when operating below 0°） |
Net weight | Net 1.27kg; With package 1.4kg |
Dimensions | 168×101×60mm |
